BrassCraft CSSD54-12

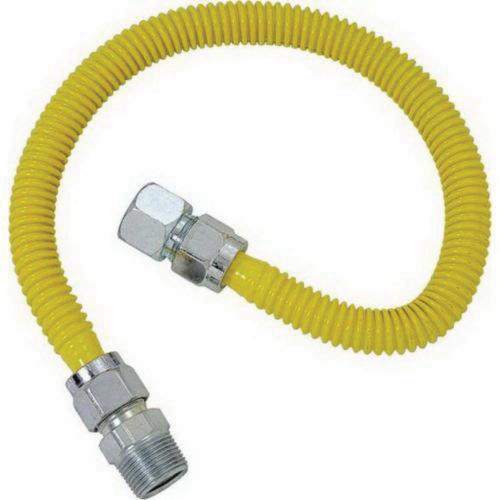

BrassCraft ProCoat® CSSD 304L Stainless Steel Tube Coated Gas Appliance Connector, FIP x MIP, 12 Inch L

  • Mfg. Name: BrassCraft
  • Brand Name: BrassCraft
  • MPN: CSSD54-12
  • PSCN: 24075
  • UPC: 026613112473
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The ProCoat® coating helps protect the stainless steel connector from corrosion due to prolonged exposure to harsh chemicals found in common household cleaning, plumbing repair and building products (ammonia, chlorine, solder flux and muriatic acid). Designed for indoor and outdoor use, ProCoat® is resistant to the harsh effects of UV rays and salt.

  • Superior corrosion-resistance to harsh chemicals found in common household cleaning, plumbing repair and masonry products
  • UV rays and salt resistant, ProCoat connectors are certified for indoor and outdoor use
  • Greater strength and flexibility with greater depth and number of corrugations to withstand greater torque & bend cycles
  • Outperforms industry standards for torsion (1.5X) without compromising the integrity of the coating or connector
  • Outperforms industry standard for repeated bending (2X) without compromising the integrity of the coating or connector
  • One-piece construction has no soldered of brazed joints
  • Smoother, burnished flare on connector ends seal with less torque
  • Uniform coat over entire length of connector for complete corrosion-resistance of the stainless steel core
  • 100% leak tested
  • 12L14 or 1010 steel nuts and fittings

Standard/Approvals: CSA Listed To ANSI Z21.24 / CSA 6.10 / CSA 6.27

Application: For Use With Indoor And Outdoor Connections Of Gas Appliances To Gas Piping System

Brand : BrassCraft
Sub Brand : ProCoat®
Item Name : Coated Gas Appliance Connector
Series/Model : CSSD
Nominal Size : 1/2 x 1/2 Inch
Connection Type : FIP x MIP
Inside Diameter : 3/8 Inch
Outside Diameter : 1/2 Inch
Length : 12 Inch
Material : 304L Stainless Steel Tube
Finish : Polymer Blend Coated
Construction : 12L14 or 1010 Steel Nuts and Fittings
Pressure Rating : 1/2 psi
Temperature Rating : -40 to 150 deg F
BTU Rating : 102000 BTU/hr (NG), 163200 BTU/hr (LPG)
Watts Per Hour : 29893
