Honeywell TH5220D1029

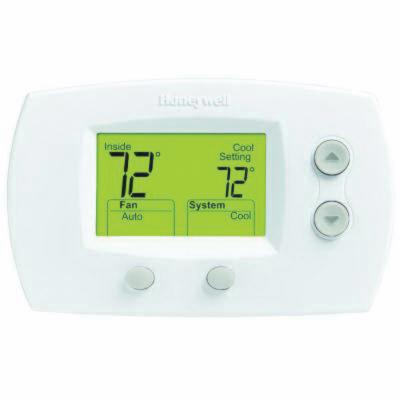

Honeywell FocusPRO® 5000 TH5220D1029 Non-Programmable Thermostat, 20 - 30 VAC or 750 mV, 2 Stage Heat/Cool

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: TH5220D1029
  • PSCN: 16845
  • UPC: 85267261999
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Honeywell's FocusPRO® 5000 digital thermostat offers the perfect blend of features, performance, energy savings and value. With the largest backlit screen in its class, the FocusPRO 5000 prominently displays both room and set temperature.

  • Easy-access battery replacement
  • Largest display in its class
  • 5-year limited warranty

Application: For Upto 2 Heat/2 Cool Conventional Systems, Upto 2 Heat/1 Cool Heat Pumps

Brand : Honeywell
Sub Brand : FocusPro® 5000
Item Name : Thermostat
Type : Non-Programmable
Number Of Heat Stages : 2
Number Of Cool Stages : 2
Terminal Designation : R, RC, C, W-O/B, G, Y, W2-AUX/E, Y2-L
Display : 5.09 sq-Inch Large Backlit Screen
Key Pad Lockout : No
Automatic Changeover : Yes
Remote Sensing Capability : No
Temporary Temperature Hold : No
Setting Temperature Range : 40 - 90 deg F (Heat), 50 - 99 deg F (Cool)
Accuracy : +/- 1 deg F
Low Battery Indicator : Yes
Batteries Included : Yes
Power Source : Dual Powered (Battery or Hardwire)
Voltage Rating : 20 - 30 VAC or 750 mV
Amperage Rating : Cool: 0.02 - 1 A Running, Heat: 0.02 - 1 A Running, 0.02 - 0.5 A Running, Fan: 0.02 - 0.5 A Running
Frequency Rating : 50/60 Hz
Switch Positions : Heat-Off-Cool-Auto-Em.Heat (System), Auto-On (Fan)
Changeover : Auto/Manual
Color : Premier White®
Height : 3-9/16 Inch
Width : 5-13/16 Inch
Depth : 1-1/2 Inch
Includes : (2) AA Batteries
For Use With : Dual Transformer
