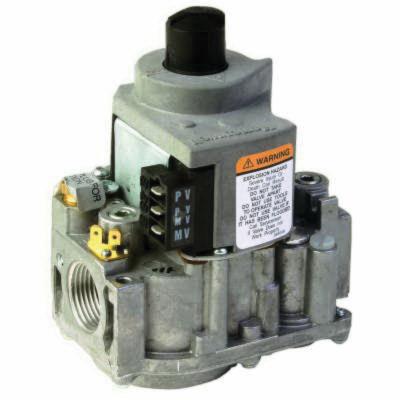

Honeywell VR8345M4302

Honeywell VR8345M Standard Opening Intermittent Universal Combination Gas Valve, 3/4 Inch NPT Inlet x 3/4 Inch NPT Outlet With 1/2 Inch NPT Side Outlet

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: VR8345M4302
  • PSCN: 13135
  • UPC: 85267780117
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

With universal application and an incredibly compact size that helps you work easily in tight spaces, the VR8345 is the only electronic ignition gas valve you need. The Honeywell VR8345 universal electronic ignition gas valve helps you stay ready for any system — intermittent pilot, direct spark ignition, hot surface pilot — you come across, any day, every day, with just one gas valve. The high BTUH capacity and multipoise mounting make the VR8345 even more versatile.

  • Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter
  • For use with natural or manufactured gas or LP gas
  • All adjustments and wiring connections accessible from top of control
  • 4 Inch swing radius allows easy rotation into position inside the tightest furnace vestibules
  • Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper
  • Internal inlet screen blocks contaminants in gas line from entering valve
  • 0 to 90 deg in any direction from the upright position of the gas control knob, including vertical mounting

Standard/Approvals: UL MCCZ2.MH5323, CSA 112395 Certified

Application: For Single Stage Application, Control For Almost Any IP, HSI or DSI Gas-Fired Appliances

Brand : Honeywell
Series/Model : VR8345M
Item Name : Combination Gas Valve
Type : Standard Opening, Intermittent/Direct Ignition, Universal
Inlet/Outlet Size : 3/4 x 3/4 Inch
Coil Voltage : 24 VAC
Connection Type : 3/4 Inch NPT Inlet x 3/4 Inch NPT Outlet with 1/2 Inch NPT Side Outlet
Amperage Rating : 0.7 A
Frequency Rating : 50/60 Hz
Dimensions : 5-3/8 Inch Height x 4-1/16 Inch Width x 2-11/16 Inch Depth
Temperature Rating : -40 to 175 deg F
Includes : (2) 3/4 x 1/2 Inch Reducer Bushings, Natural to LP Conversion Kit
Pressure Rating : 1/2 psi
Pressure Tapping : 1/8 Inch NPT with Plug
