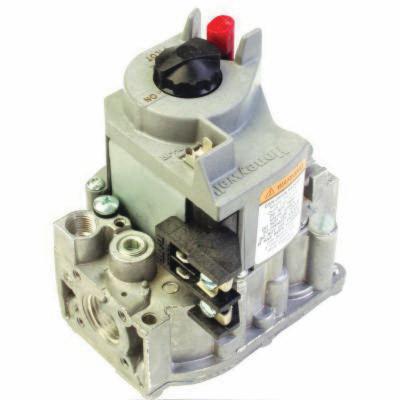

Honeywell VR8200A2132

Honeywell VR8200 Standard Opening Automatic Combination Gas Valve, 1/2 Inch NPT Inlet x 1/2 Inch NPT Outlet

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: VR8200A2132
  • PSCN: 2135
  • UPC: 85267112055
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Universal compatibility makes Honeywell standing pilot gas valves the only valves you'll ever need. Honeywell VR8200 and VR8300 models replace virtually all Honeywell and competitive valves, so you can reduce your inventory and spend less time in your truck and more time getting to the work. With their excellent capacity ranges, easy field adjustments, clearly marked wiring terminals and universal compatibility, Honeywell standing pilot gas valves have you covered for any situation.

  • Gas valves include manual valve, two automatic operators, servo pressure regulator and pilot adjustment
  • Compact size, provide two automatic valves
  • Solenoid-operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
  • Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
  • Meet codes requiring dual safety shutoff
  • Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves
  • LITE-RITE (OFF-PILOT-ON) lighting sequence
  • All adjustments, wiring connections and pilot outlet are accessible from top of control
  • Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
  • Compatible with ECO connector
  • 0 to 90 deg in any direction from the upright position of the gas control knob, including vertical mounting

Standard/Approvals: UL MCCZ2.MH5323, CSA 112395 Certified

Application: For Use in Gas-Fired, Standing Pilot Appliances with Capacities From 20 - 200 cfh, Single Stage Application

Brand : Honeywell
Series/Model : VR8200
Item Name : Combination Gas Valve
Inlet/Outlet Size : 1/2 x 1/2 Inch
Type : Standard Opening, Automatic
Coil Voltage : 24 VAC
Connection Type : 1/2 Inch NPT Inlet x 1/2 Inch NPT Outlet
Amperage Rating : 0.5 A Anticipator Setting, 300 mA Maximum Hold-In, 250 - 90 mA Drop-Out
Frequency Rating : 60 Hz
Dimensions : 5-3/16 Inch Height x 4-1/8 Inch Width x 3-1/4 Inch Depth
Temperature Rating : 0 - 175 deg F
Includes : Manual Valve, (2) Automatic Operators, Servo Pressure Regulator and Pilot Adjustment, (1) 3/4 Inch Straight Flange, (1) 1/2 x 3/8 Inch Reducer Bushing, Natural to LP Conversion Kit
Pressure Rating : 1/2 psi
Pressure Tapping : 1/8 Inch NPT with Plug
