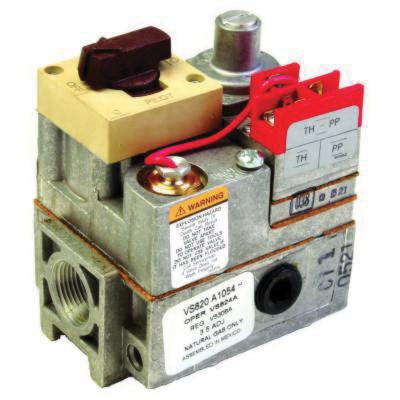

Honeywell VS820A1054

Honeywell VS820A Standard Opening Automatic Pilot Gas Valve, 3/4 Inch NPT Inlet x 3/4 Inch NPT Outlet With 1/2 Inch NPT Side Outlet

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: VS820A1054
  • PSCN: 15201
  • UPC: 085267115377
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

These gas controls combine a Lite-Rite manual gas cock, safety shutoff Pilotstat assembly, millivoltage automatic valve operator, and optional gas pressure regulator. They require the use of a 750 mV Powerpile generator (thermopile). The generator, heated by the pilot burner flame, provides the electrical energy to operate the combination gas control. A millivoltage thermostat with suitable accessory controls completes the automatic control system for the heating appliance.

  • Easy to install, adjust and service, all adjustments and connections are accessible from top of control
  • Add separate energy cutoff (ECO) where codes call for dual safety shutoff
  • Complete safety shutoff on pilot flame failure
  • LITE-RITE (OFF-PILOT-ON) lighting sequence
  • Self-powered automatic control, use with 750 mV pilot generator
  • If gas or power supply is interrupted, main gas valve is closed
  • Straight-through, multi-tapped with 1/2 Inch right and left outlets plugged body pattern
  • Compression fitting for 1/4 Inch OD tubing
  • 0 to 90 deg in any direction from the upright position of the gas control knob, including vertical mounting

Standard/Approvals: UL MCCZ2.MH5323, CSA 112395 Certified

Application: For Use on Domestic Equipment From Small Individual Room Heaters to Large Central Heating Units

Brand : Honeywell
Series/Model : VS820A
Item Name : Pilot Gas Valve
Type : Standard Opening, Automatic
Coil Voltage : 750 mV
Connection Type : 3/4 Inch NPT Inlet x 3/4 Inch NPT Outlet with 1/2 Inch NPT Side Outlet
Dimensions : 4-3/4 Inch Height x 4-1/16 Inch Width x 3-3/16 Inch Depth
Temperature Rating : 32 - 175 deg F
Includes : Pilot Flow Adjustment Screw, (2) 3/4 Inch x 1/2 Inch Reducer Bushing, (1) 1/2 Inch x 3/8 Inch Reducer Bushing
Pressure Rating : 1/2 psi
Capacity : 335000 BTUH at 1 Inch WC P.D., 34000 - 425000 BTUH Natural Gas
Pressure Tapping : 1/8 Inch NPT with Plug
