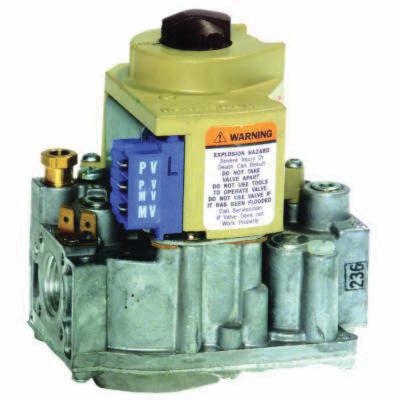

Honeywell VR8204H1006

Honeywell VR8204 Slow Opening Dual Intermittent Automatic Pilot Gas Valve, 1/2 Inch NPT Inlet x 1/2 Inch NPT Outlet

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: VR8204H1006
  • PSCN: 368849
  • UPC: 085267112994
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • Use with S86F,H; S8600F,H and S8610 control modules
  • Compact size and provide two automatic valves
  • Solenoid-operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
  • Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
  • Meet codes requiring dual safety shutoff
  • Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves
  • All adjustments and wiring connections are accessible from top of control
  • On-off lighting sequence
  • Compatible with ECO connector
  • Straight-through body pattern
  • Compression fitting for 1/4 Inch OD tubing
  • 0 to 90 deg in any direction from the upright position of the gas control knob, including vertical mounting

Standard/Approvals: UL Recognized MCCZ2.MH5323, CSA Certified 112395, American Gas Association (AGA) Design Certificate L2025006, Canadian Gas Association (CGA) Design Certificate L2025006, Australian Gas Association (AGA) Design Certificate 4214, Approved For Delta C Applications

Application: For Use in Gas-Fired, Intermittent Pilot Appliances with Capacities From 20 - 200 cfh, Single Stage Application

Brand : Honeywell
Series/Model : VR8204
Item Name : Pilot Gas Valve
Type : Slow Opening, Dual Intermittent, Automatic
Coil Voltage : 24 VAC
Connection Type : 1/2 Inch NPT Inlet x 1/2 Inch NPT Outlet
Frequency Rating : 60 Hz
Dimensions : 4-5/8 Inch Height x 4-1/8 Inch Width x 2-11/16 Inch Depth
Temperature Rating : 0 - 175 deg F
Includes : Manual Valve, (2) Automatic Operators, Servo Pressure Regulator and Pilot Adjustment
Pressure Rating : 1/2 psi
Capacity : 150000 BTUH at 1 Inch WC P.D., 20000 - 200000 BTUH Natural Gas
Pressure Tapping : 1/8 Inch NPT with Plug
