Dura-Vent FSVL1803

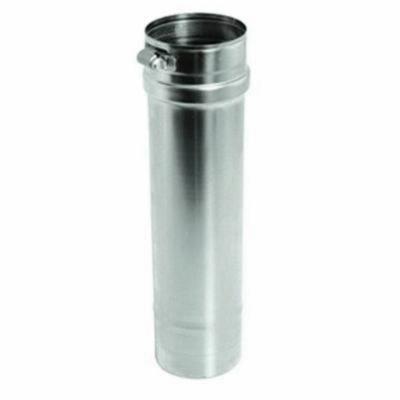

Dura-Vent FasNSeal® FSVL1803 Round Single Wall Stainless Steel Vent Pipe, 3 Inch O.D x 18 Inch L

  • Mfg. Name: Protech Systems
  • Brand Name: Dura-Vent
  • MPN: FSVL1803
  • PSCN: 220
  • UPC: 841211000034
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

All FasNSeal (single-wall) vent lengths and components feature patented built-in mechanical locking band and triple-lipped directional gaskets. All pipes and components are engineered with smooth clean welds located 90 deg from mechanical locking bands. This construction feature allows for ease of installation. The 1/2 Inch air space between the inner and outer wall on FasNSeal W2 helps to reduce the clearance to combustibles in addition to creating a heat shield for additional safety. All FasNSeal components which come in contact with exhaust gases and condensates are now silicone free. This important design and manufacturing feature greatly reduces the chances of system breakdown and failure. The main problems with silicone are there are too many adhesion factors which are very difficult to control and the process of binding similar materials with an epoxy, which can weaken the bond over time.

  • FasNSeal is for use with natural gas or propane categories II, III and IV appliances or Type BH gas vent systems, having a max rated operating temperature of 480 deg F and a max positive pressure of 15 Inch water column
  • Use to add length to straight length of FasNSeal pipe
  • Requires at least 4 Inch overlap for a secure connection

Standard/Approvals: UL 1738 And ULC S636 Listed

Application: For High Efficiency Gas Boilers, Furnaces, Booster Heaters, Pool Heaters, Water Heaters, Unit Heaters Or Tankless Water Heaters

Brand : Dura-Vent
Sub Brand : FasNSeal®
Item Name : Vent Pipe
Type : Round, Single Wall
Fuel Type : Gas
Outside Diameter : 3 Inch
Length : 18 Inch
Pipe Class : AL29-4C
