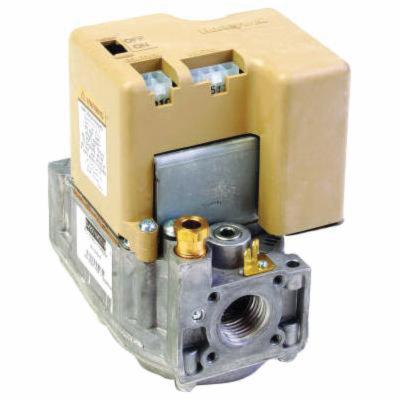

Honeywell SV9501M2528

Honeywell SmartValve™ SV9501 Intermittent Hot Surface Pilot Gas Valve, 24 VAC, 1/2 Inch x 1/2 Inch NPT, 200000 BTU

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: SV9501M2528
  • PSCN: 19257
  • UPC: 085267791090
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The SmartValve® System Controls combine gas flow control and electronic intermittent pilot sequencing functions into a single unit. This product family offers several different intermittent pilot sequences for a wide range of applications. The specific application of the SmartValve System is the responsibility of the appliance manufacturer. They are directly compatible with the Q3450 or Q3480 Intermittent Pilot burners used with the original controls on the appliance.

  • Ignition sequence includes timed trial for ignition
  • Pilot ignition source, HSI flame sense, pilot gas outlet
  • Straight-through body pattern
  • Natural gas control
  • 0 to 90 deg in any direction from the upright position of the gas control knob, including vertical mounting

Standard/Approvals: AGA Design C2030017, CSA 112395 Certified

Application: For A Wide Range Of Gas-Fired Appliances Including Residential Furnaces, Roof-Top Furnaces, Residential Boilers, Unit Heaters, Infrared Heaters, Space Heaters And Commercial Cooking Units

Brand : Honeywell
Sub Brand : SmartValve™
Series/Model : SV9501
Item Name : Intermittent Hot Surface Pilot Gas Valve
Type : Standard Opening
Connection Type : 1/2 Inch x 1/2 Inch NPT
Voltage Rating : 24 VAC
Frequency Rating : 50/60 Hz
Timing Range : 90 sec Ignition Trial Time, 1.6 sec at 3 µA Flame Failure Response Time
Dimensions : 4.1 Inch Length x 3.2 Inch Width x 4.9 Inch Height
Temperature Rating : -40 to 175 deg F
Includes : Natural to LP Conversion Kit, Extension harness
Pressure Rating : 1/2 psi
Capacity : Maximum at 1 Inch P.D. 150 ft³/hr, Maximum 200 ft³/hr, Minimum 20 ft³/hr
Pressure Setting : 3.5 Inch WC
Pressure Tapping : 1/8 Inch NPT
BTU Rating : 200000 BTU
