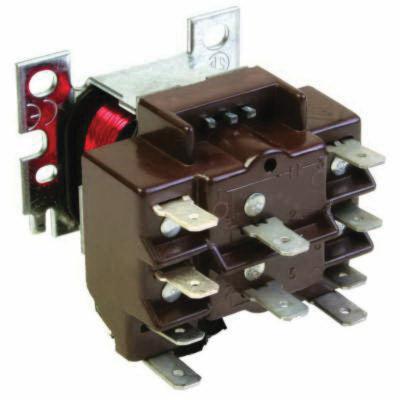

Honeywell Tradeline® R8222 AC Switching General Purpose Magnetic Relay, 24 V Coil, DPDT

Retail Price:

Qty

Add / Remove CPN

Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation
Open coil assures cooler operation
Laminated magnet construction for higher efficiency
Base designed for easy replacement of competitive relays
Double quick-connect coil terminals
Plug compatible with Steveco 90-340 and Mars 90340

Standard/Approvals: UL File No. E59779, Guide No. NLDX2, CSA File No. LR35066, Guide No. 184-N-13.13 Certified

Application: For Refrigeration And Air Conditioning Equipment, Appliances, Vending Machines And Similar Applications

Brand	:	Honeywell
Sub Brand	:	Tradeline®
Item Name	:	General Purpose Magnetic Relay
Series/Model	:	R8222
Type	:	AC Switching
Amperage Rating	:	12 A Full Load, 60 A Locked Rotor
Coil Voltage	:	24 V
Connection Type	:	Double quick-connect spade terminals
Contact Configuration	:	DPDT
Contact Rating	:	AFL: 3 A at 480 VAC, 6 A at 208 VAC, 240 VAC, 277 VAC, 12 A at 120 VAC, ALR: 18 A at 480 VAC, 35 A at 208 VAC, 240 VAC, 277 VAC, 60 A at 120 VAC, Resistive: 10 A at 480 VAC, 20.8 A at 120 VAC, 208 VAC, 240 VAC, 277 VAC
Temperature Rating	:	-20 to 155 deg F
Frequency Rating	:	50/60 Hz
Dimensions	:	2-5/32 Inch Height x 1-7/8 Inch Width x 2-3/8 Inch Depth
