B & D 1-230QFC-M

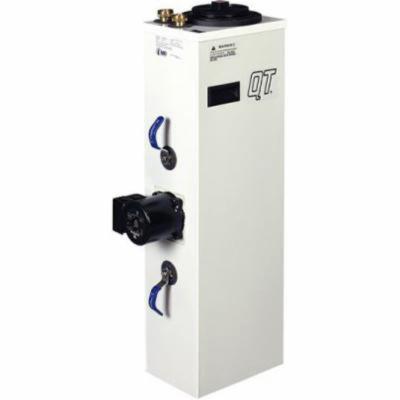

B & D QT® 1-230QFC-M 3-Speed Insulated Single Pump Flow Center, 1 Inch x 1 Inch

  • Mfg. Name: B & D Mfg
  • Brand Name: B & D
  • MPN: 1-230QFC-M
  • PSCN: 18294
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The QT® Flow Center is designed to provide long, reliable operation in an attractive cabinet, while providing installation and service benefits of the GT Flow Center. The stylish rugged insulated cabinet provides for flexible installation without feeling the need to hide it out of sight. The QT Flow Centers are now standard equipment for geoexchange heating and cooling. The QT Flow Center is one of the greatest things to happen to the geoexchange industry.

  • Flow center includes a built-in pump protection feature that eliminates the need for a flush cart when filling and flushing a closed-loop system when your manifolds are indoors
  • Non-pressurized flow center eliminates callbacks and fast installation
  • Air separation chamber continually performs purging function
  • Foam insulation eliminates unslightly condensation
  • Strong durable construction
  • Removable lid easy to fill which checks flow rate and adds anti-freeze
  • Check valve pump protection
Brand : B & D
Sub Brand : QT®
Item Name : Single Pump Flow Center
Type : 3-Speed, Medium, Insulated
HP Rating : 1/6 hp
Maximum Flow : 38 gpm
Voltage Rating : 230 V
Inlet Diameter : 1 Inch
Inlet Connection : FPT
Outlet Diameter : 1 Inch
Outlet Connection : FPT
Amperage Rating : 0.9 A
Maximum Head : 37 ft
Head Range : 0 - 37 ft
Includes : Pump Curves
