DiversiTech WG840587

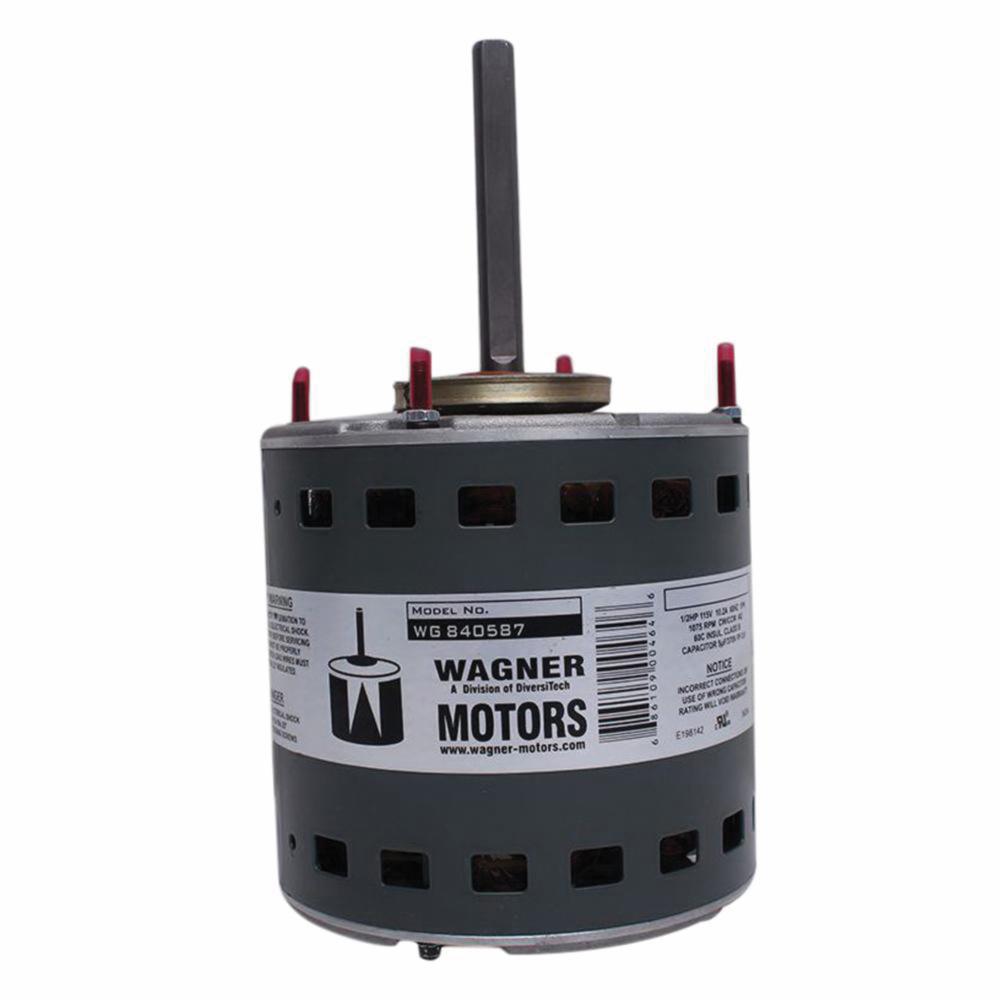

DiversiTech WG840587 3-Speed Permanent Split Capacitor Direct Drive Furnace Blower Motor, 115 VAC, 1075 Rpm, 1/2 hp

  • Mfg. Name: DiversiTech
  • Brand Name: DiversiTech
  • MPN: WG840587
  • PSCN: 388466
  • UPC: 0686109004646
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Multiple horsepower motors allow the contractor and distributor to consolidate multiple part codes into a single stocking unit. The multiple horsepower motor allows the contractor to carry one motor that can be used as a replacement for a wide variety of OEM and other replacement motors, saving time and money.

  • Installs with all standard 48 frame mounting brackets
  • Standard shaft length, diameter, and flats
  • Uses 370 V capacitors
  • Standard 48 frame motor casing size
  • Low power consumption
  • Automatic thermal overload protector
  • Continuous duty, electrically reversible
  • Class B insulation, quiet operation
  • Bright, colorful, easy to read packaging removes confusion about motors
  • Extended mounting bolts provide for easier installation in cramped spaces, with the longer bolts, the installer is able to more easily start the threaded mounting nut
  • Partial stripping leaves the insulation on the motor connection wire, this protects the stranded copper wire and prevents damage to individual strands

Standard/Approvals: C/US UL Listed

Brand : DiversiTech
Item Name : Direct Drive Furnace Blower Motor
Type : 3-Speed, Permanent Split Capacitor
Voltage Rating : 115 VAC
Amperage Rating : 10.2 A
Diameter : 5.59 Inch
HP Rating : 1/2 hp
Length : 10.39 Inch
Rotation : CW/CCW
Temperature Rating : 60 deg C
Weight : 16.3 lb
Finish : Grey-Green Powdercoat
Frequency Rating : 60 Hz
Includes : 2.5 Inch Diameter Hub Rings
Phase : 1
Shaft Dimensions : 1/2 Inch Diameter x 4-1/2 Inch Length
Lead Wire Length : 30 Inch
Lead Wire Gauge : 18 AWG
Frame Size : 48
Run Capacitor : 370 VAC - 5 to 20 micro-F
