Sustainable Coils 1036A16

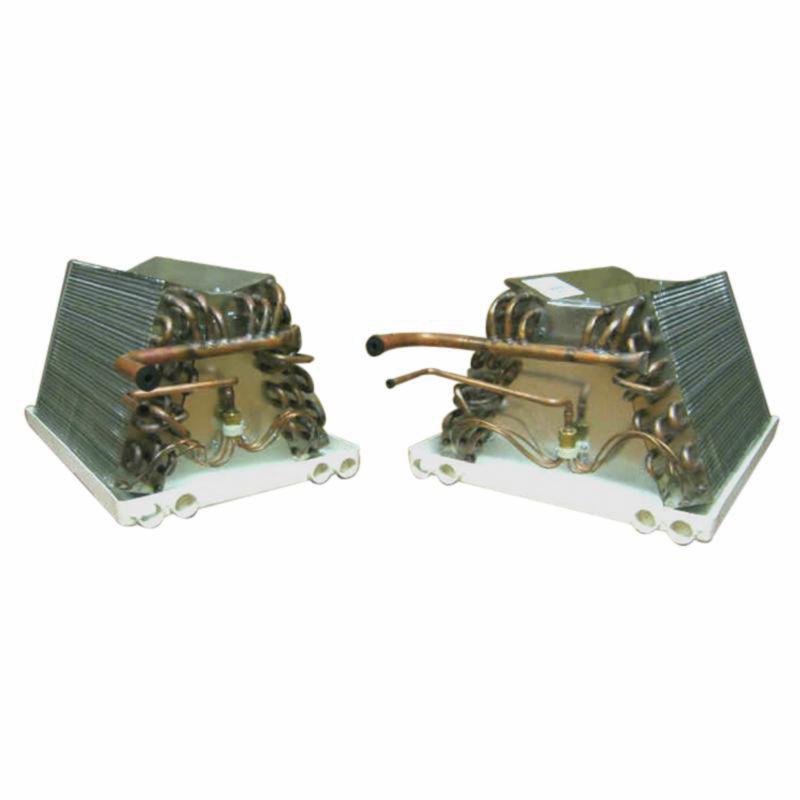

Sustainable Coils 1036A16 Copper Alloy Tubing Uncased Replacement Evaporator Coil With Piston, 3 ton, 3/4 Inch Suction

  • Mfg. Name: Sustainable Coils
  • Brand Name: Sustainable Coils
  • MPN: 1036A16
  • PSCN: 423876
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Low profile 3 row replacement A-coil that is available in 13 Inch and 16 Inch wide plastic drain pan that is 19-1/2 Inch deep. The nylon resin is UL 94, 5VFR and UV light safe. The coil is left hand configured with pre-swaged 3/8 liquid, 3/4 suction line connections and shipped with a dry nitrogen holding charge. The coils are piston metered for a nominal 3 ton R-22 refrigerant application and can be converted to R-410A refrigerant by resizing the piston or installing a R-410A expansion valve. The face area of the coil is 3.12 sq-ft and the internal refrigerant volume is 131.71 cu-Inch.

  • 3/8 O.D rifled Uniguard™ copper alloy tubing, 0.0045 Inch aluminum, 1 x 0.866 Inch enhanced louvered fin
Brand : Sustainable Coils
Item Name : Evaporator Coil with Piston
Type : Uncased, Replacement
Capacity : 3 ton
Drain Pan : Matrixx 75s5251 Nylon 66 25% GF Resin
Refrigerant Type : R-22
Material : Aluminum Fin
Tubing Material : Copper Alloy
Suction Line Size : 3/4 Inch
Liquid Line Size : 3/8 Inch
Dimensions : 16 Inch Width x 19-1/12 Inch Length x 14-1/12 Inch Height
