Purolator F312

Purolator 21x29x1 Fiberglass Air Filter

  • Mfg. Name: Purolator
  • Brand Name: Purolator
  • MPN: F312
  • PSCN: 386001
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

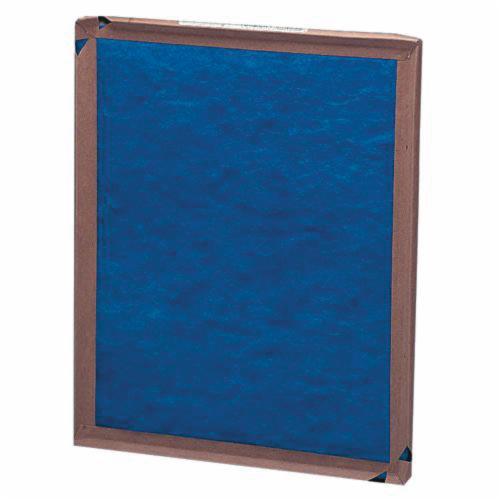

Purolator F312-SP1 Kraft Board Frame Disposable Air Filter, 21 Inch L x 1 Inch W x 29 Inch H, Blue

The F312 disposable panel filters are designed to withstand the demands of tough industrial and commercial applications. Purolator assures filter durability by utilizing construction features not found in traditional designs.

  • Frame - Purolator F312 frames are produced using post-consumer recycled materials
  • The unique Monobond pinch frame concept involves a one-piece frame sealed to the media under heat and pressure
  • This construction feature produces a continuous bond of media to board around the periphery of the frame, eliminating weak corners and air bypass
  • The use of a high tensile strength polyethylene binder increases the integrity of the seal, allowing the filter to withstand varying temperatures and humidity levels
  • Media - Purolator F312 filters are manufactured with superior grade fiberglass media to guarantee full depth loading and high dust holding capacity
  • A computer-controlled manufacturing process assures a uniform gradient density pattern in the media
  • To enhance filtration capability and prevent migration of finer particles, the filter media has a skin backing and is evenly coated with a gelled adhesive
  • Improved aerodynamics reduce restriction to air flow
  • Safe, easy, fast installation
  • Larger effective filtering surface area

Standard/Approvals: C/US UL 900 Listed Class 2, ASHRAE Certified, ISO 9001:2000 Certified

Brand : Purolator
Series/Model : F312-SP1
Item Name : Air Filter
Type : Industrial Strength, Standard, Disposable
Media Material : Fiberglass
MERV Rating : 4
Material : Kraft Board Frame
Air Flow Velocity (FPM) : 300 fpm
Resistance (W.G.) : 0.07 Inch Initial, 0.5 Inch Final
Avg Arrestance : 0.72
Temperature Rating : 150 deg F
Length : 21 Inch
Width : 1 Inch
Height : 29 Inch
