Little Giant 554200

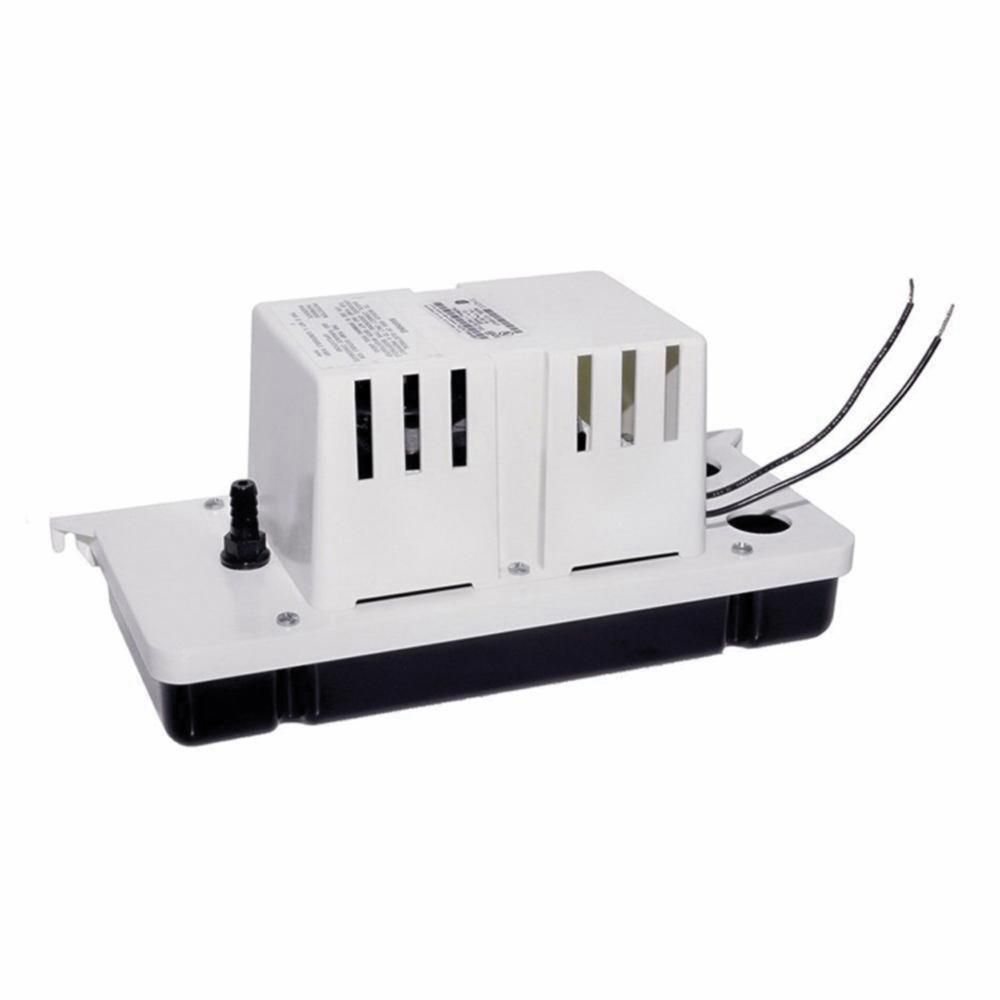

Little Giant VCC Series ABS Low-Profile Condensate Removal Pump With Safety Switch, 1/30 hp, 115 V, 1.5 A

  • Mfg. Name: Little Giant
  • Brand Name: Little Giant
  • MPN: 554200
  • PSCN: 3600
  • UPC: 10121542006
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The VCC series features a low profile compact size for applications with limited space. The pump is rated for high-efficiency gas furnace applications that produce an acidic condensate.

  • Low profile for limited space applications
  • ABS tank, motor cover, and volute
  • Removable 3/8 Inch barbed check valve
  • Thermal overload protection
  • Vertical centrifugal pump design
  • Automatic start, stop and high level water detection (safety overflow switch)
  • Two 5 Inch safety overflow switch lead wires
  • 6 ft, 3-conductor cable with grounded 3-prong plug
  • 1/4 Inch Outer Diameter barbed discharge adapter (included in the box)
  • Thermally protected, fan cooled motor
  • Built-in wall mount tabs

Standard/Approvals: C/US CSA Certified

Application: For Removal of Condensate From an Air Conditioner, Suitable For High Efficiency And Gas Furnace Condensation

Brand : Little Giant
Item Name : Condensate Removal Pump with Safety Switch
Series/Model : VCC-20ULS, VCC Series
Type : Low Profile
Mounting Type : Wall
Tank Capacity : 3/10 gal
Amperage Rating : 1.5 A
Voltage Rating : 115 V
Wattage Rating : 93 W
HP Rating : 1/30 hp
Frequency Rating : 60 Hz
GPH of Water at 10 Ft. of Head : 45 gph
GPH of Water at 5 Ft. of Head : 70 gph
GPH of Water at 1 Ft. of Head : 80 gph
Height : 5.09 Inch
Width : 12 Inch
Depth : 5 Inch
Temperature Range : Upto 120 deg F Intermittent
Material : ABS Housing/Tank
Cord Length : 6 ft
Shaft Material : Stainless Steel
Shut-Off Head : 20 ft
Discharge : 3/8 Inch Barb
Pressure Rating : 8.6 psi (Shut-Off)
Includes : Safety Switch, 6 ft Power Cord, Thermal Overload Protector, Nylon Sump Pan, Control Float, Filter Screen
