Little Giant 553458

Little Giant EC Series Polystyrene Float Automatic Mini-Split Condensate Removal Pump With Safety Switch, 230 V, 0.1 A

  • Mfg. Name: Little Giant
  • Brand Name: Little Giant
  • MPN: 553458
  • PSCN: 224526
  • UPC: 10121109858
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The EC-400 is a complete pumping system designed to remove condensation from wall mounted, ceiling and coil split-system air conditioning equipment when gravity drainage is not possible. Compact design allows installation in most split-systems. Components can be placed into the air handler or the pump can be placed up to 3 ft above the air handler in the ceiling void or inside trunking conduit. A three position symmetrical float sensing system assures reliable on, off and overflow detection functions.

  • Right- or left-side installation
  • 19.7 Inch drain hose tubing
  • 90 deg "elbow" for locating pump reservoir
  • 31.5 Inch straight line set cover
  • Line set duct accommodates 3/8 Inch and 5/8 Inch line set pipe
  • Twist motion snap-lock clips and cable ties to secure line set
  • Pump enclosure/mounting bracket
  • Wall fasteners for line set duct
  • Air conditioner trim and bracket
  • Ceiling plate when installing without pump enclosure
  • For intermittent operation, maximum 50% duty cycle
  • Condensate produced in application must be no more than half the pump's flow rate for any given head

Standard/Approvals: C/US CSA Certified, C/US UR Listed

Application: For Removing Condensate From Ductless Mini-Split Air Conditioners Upto 25000 BTUH And Fan-Coil Equipment

Brand : Little Giant
Item Name : Mini-Split Condensate Removal Pump with Safety Switch
Series/Model : EC-400, EC Series
Type : Automatic, In-Pan
Mounting Type : Wall
Amperage Rating : 0.1 A
Voltage Rating : 230 V
Wattage Rating : 20 W
Frequency Rating : 50/60 Hz
GPH of Water at 10 Ft. of Head : 1 gph
GPH of Water at 5 Ft. of Head : 1.5 gph
GPH of Water at 1 Ft. of Head : 2.5 gph
Height : 1.4 Inch
Width : 4.4 Inch
Depth : 1-3/4 Inch
Material : Polystyrene Float
Cord Length : 84 Inch
Lift : 3 ft Suction
Shut-Off Head : 35 ft
Discharge : 5/32 Inch Barb

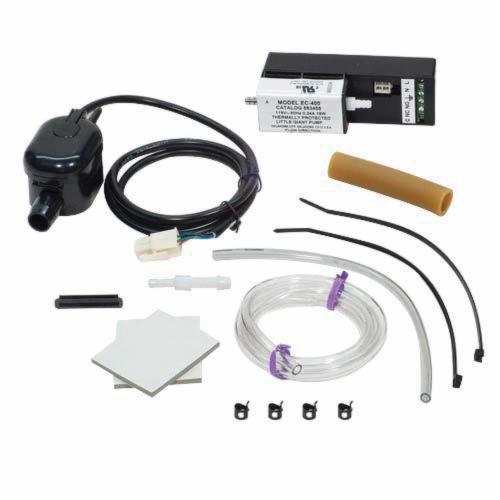

Includes : Pump/Controller, Safety Switch, Suction Tubing (3 Inch x 5/32 Inch Inner Diameter), Vent Tubing (8 Inch x 5/32 Inch Inner Diameter), Drain Tubing (3 Inch x 1/2 Inch Inner Diameter) and Tubing Adapter (5/32 Inch x 1/4 Inch Inner Diameter)
