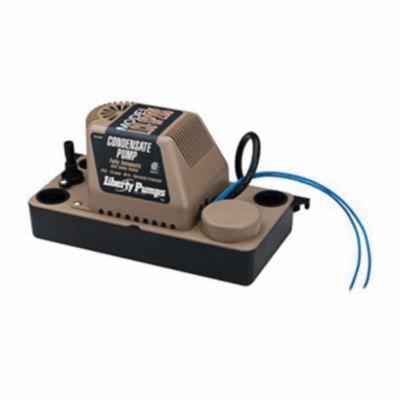

Liberty Pumps LCU-SP20S

Liberty Pumps LCU Series High Impact ABS Automatic Shallow Pan Condensate Pump With Safety Switch, 1/30 hp, 115 V, 1.5 A

  • Mfg. Name: Liberty Pumps
  • Brand Name: Liberty Pumps
  • MPN: LCU-SP20S
  • PSCN: 425686
  • UPC: 671812114355
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The LCU-series condensate pumps from Liberty are designed to handle removal of condensate from high efficiency furnaces, A/C equipment, dehumidifiers, ice machines and other applications producing condensate.

  • Three intake holes, 3/8 Inch O.D. outlet
  • Barbed and threaded discharge connection
  • Removable check valve
  • 6 ft power cord with ground
  • Thermally protected, fully automatic, quiet operation
  • 3-year warranty

Standard/Approvals: C/US CSA Certified

Application: For Removal of Condensate From High Efficiency Furnaces, A/C Equipment, Ice Machines, Drinking Fountains, Beverage Machines, Dehumidifiers And Other Applications Requiring Condensate Removal

Brand : Liberty Pumps
Item Name : Shallow Pan Condensate Pump with Safety Switch
Series/Model : LCU Series
Type : Automatic
Mounting Type : Wall
Tank Capacity : 1 US qt
Amperage Rating : 1.5 A
Voltage Rating : 115 V
HP Rating : 1/30 hp
Frequency Rating : 60 Hz
GPH of Water at 1 Ft. of Head : 105 gph
Height : 5 Inch
Width : 11-1/8 Inch
Depth : 5 Inch
Temperature Range : 150 deg F
Material : High Impact ABS Tank
Cord Length : 6 ft
Shaft Material : Stainless Steel
Lift : 17 ft Recommended
Shut-Off Head : 20 ft
Maximum Head : 20 ft
