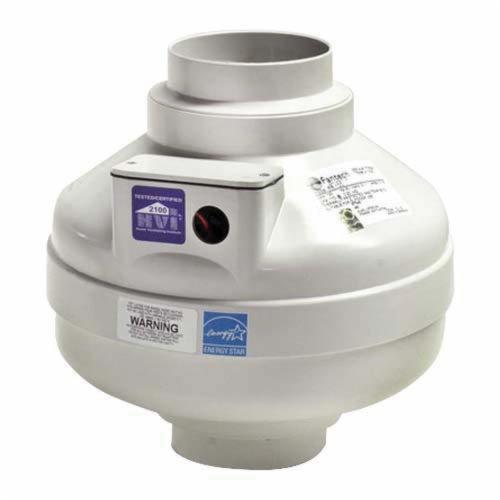

Fantech FR-160

Fantech FR Series ABS-PC Blend Thermo Plastic Housing Round Inline Centrifugal Duct Fan, 115 V, 2750 Rpm

  • Mfg. Name: Fantech
  • Brand Name: Fantech
  • MPN: FR-160
  • PSCN: 397823
  • UPC: 650737011604
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The FR series is a versatile inline duct fan. These models can be used for multiple point exhaust, residential and commercial applications, crawl space venting or make-up air supply. They are also widely used as booster fans to move air from one room or area to another. A centrifugal type exhaust/supply fan specifically designed for moderate size ventilation applications. The fan can be mounted in any angle at any point along the duct work and straight-through air flow design allows easy installation. By using FC type mounting clamps fan can easily be removed from duct work for service. Fans are constructed in accordance with standard dimensions for spiral duct eliminating the need for transition pieces. Fan motors are capable of operating in air stream temperatures up to 140 deg F. Motor bearings are permanently sealed, self lubricating ball type. All fans are 100% speed controllable through a decrease in the voltage by using a solid state or transformer type control. All FR series fans are backed by Fantech's 5-year warranty.

  • Vibration welded seam ensures leak proof housing
  • 100% speed-controllable
  • The fans feature a fully sealed plastic housing, fan housing shall be constructed of UV resistant ABS-PC blend thermo plastic
  • The housing is joined via a vibration welding process
  • The process uses transverse, reciprocating motion at the point of contact between the housing's inlet and outlet pieces
  • The friction produces heat that melts the thermoplastic material at the interface, the melted material quickly re-solidifies, resulting in a fused, single-piece housing
  • The fused seam is inherently air tight, very strong and permanent
  • No screws or adhesive is used to join the housing pieces
  • An air-tight fan ensures that efficiency is not lost and contaminants are not spilled due to leakage
  • The fan to be mounted in outdoor and wet locations
  • The FR series features external rotor motors that have proven dependable year after year
  • A large electrical wiring enclosure is designed into the fan housing, making electrical installation easier
  • Thermal overload protected with automatic reset, acceptable for continuous duty
  • The fans can be controlled via a solid state speed controller
  • Fan shall be supplied with an integral external electrical terminal box with pre-wired terminal strip connections
  • Capacitor shall be provided and shall be located within the fan electrical terminal box for easy access
  • Motorized impeller shall be an external rotor type, class B insulation, totally enclosed PSC type for maximum efficiency
  • Sufficient service factor shall be provided to ensure long maintenance free operation over maximum load conditions
  • Fan wheel shall be of the backward inclined centrifugal type with a well designed inlet venturi for maximum performance
  • 5-year limited warranty

Standard/Approvals: C/US UL Listed, CSA Certified

Application: For Wet Locations

Brand : Fantech
Item Name : In-Line Centrifugal Duct Fan
Series/Model : FR Series
Type : Round
Voltage Rating : 120 V
Amperage Rating : 0.99 A
RPM : 2296 Rpm
Hertz : 60 Hz
Wattage Rating : 116 W
CFM : 341 cfm
Duct Size : 6 Inch
Material : ABS-PC Blend Thermo Plastic Housing
Length : 11-1/2 Inch
Height : 9-1/4 Inch Height
Energy Star : Yes
HVI Certified : Yes
