S&P TD-200

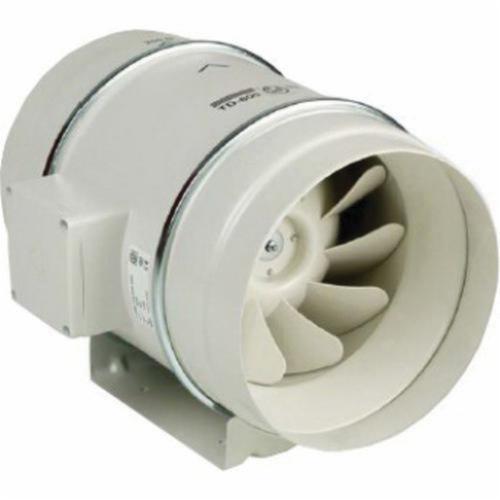

S&P TD-MIXVENT Low Speed Inline Mixed Flow Duct Fan, 2781 Rpm, 458cfm at 0.25 Inch

  • Mfg. Name: Soler & Palau
  • Brand Name: S&P
  • MPN: TD-200
  • PSCN: 12804
  • UPC: 812482010336
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The TD-MIXVENT series of in-line duct fans have been specially designed to maximize the airflow performance with minimal noise levels within the smallest and most compact of housing sizes. This makes the TD-MIXVENT series the ultimate solution for small to medium sized ventilation installations which require a high airflow to pressure ratio and occupy only the minimum space possible. Example: false ceiling voids, cabinets and many other limited space environments.

  • Mixed flow impeller for excellent air flow to pressure performance ratio
  • Direct connection, two-speed motor
  • Ideal for applications where space is limited
  • Class I electrical insulation
  • IP 44 protection
  • Thermal overload protection
  • Class B motor insulation
  • Sealed for life, ball bearings

Standard/Approvals: C/US UL Listed, Energy Star® Qualified

Brand : S&P
Item Name : In-Line Mixed Flow Duct Fan
Series/Model : TD-MIXVENT
Type : Low Speed
Voltage Rating : 120 V
RPM : 2781 Rpm
Wattage Rating : 184 W
CFM : 458 cfm at 1/4 Inch
Duct Size : 8 Inch
Material : Tough Reinforced Plastic
Length : 11-7/8 Inch
Width : 9-3/16 Inch
