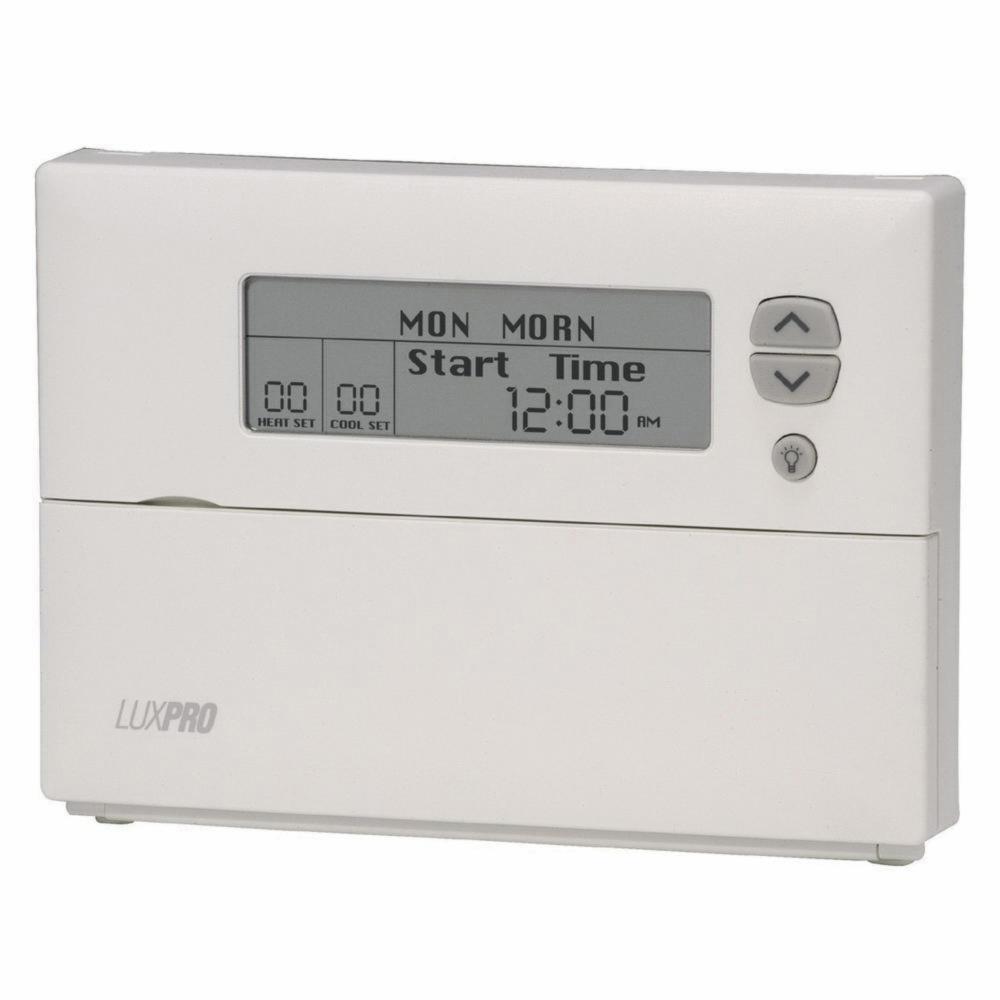

LuxPro PSP-722E

LuxPro Everything Stat® PSP-722E 2H/2C Digital Programmable Thermostat, 45 - 90 deg F, 2 A, 24 VAC

  • Mfg. Name: LuxPro
  • Brand Name: LuxPro
  • MPN: PSP-722E
  • PSCN: 4692
  • UPC: 021079207220
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • Controls up to 2 Stages of heat and 2 stages of cooling plus auxiliary and emergency heat
  • Auto changeover
  • Large hybrid dot matrix display
  • Auxiliary and emergency heat indicators
  • EL (electro luminescent) backlight
  • IAQ independently programmable fan
  • Programmable filter timer with change filter indicator
  • Energy usage monitor
  • Easy programming with LUX speed dial
  • Advanced copy function for fast easy programming
  • Nonvolatile memory for all programs and settings
  • Daylight savings button
  • Multimode keyboard lockout with user programmable 3 digit code
  • Programmable high and low setting limits
  • Defeatable audible button response
  • Menu driven setup done from the front panel
  • Multi-stage adjustable temperature differential/cycle rate
  • Programmable length minimum run time
  • Programmable auto-changeover dead-band
  • Programmable fan delays for heat, cool, in both on and off

Standard/Approvals: CE Certified

Application: For 24 V Gas, Oil, Electric Heating And Air Conditioning Systems, Multi-Stage Heat Pumps, 2 Wire Hydronic Systems, Hydronic Air Handlers, Millivolt Systems

Brand : LuxPro
Sub Brand : Everything Stat®
Item Name : Programmable Thermostat
Type : Universal Compatibility, Digital
Number Of Heat Stages : 2
Number Of Cool Stages : 2
Terminal Designation : RH, RC, O, B, W1, W2, Y1, Y2, G, E, C
Accuracy : +/- 1 deg F
Voltage Rating : 24 VAC
Amperage Rating : 8.33333333333333E-02
Includes : (2) AA Batteries, 6-1/2 Inch Wide x 4-3/8 Inch Tall Wall Plate
Operating Humidity : 20 - 90% Non-Condensing
Operating Temperature : 32 - 95 deg F
