Honeywell DS06-102-SUT-LFU

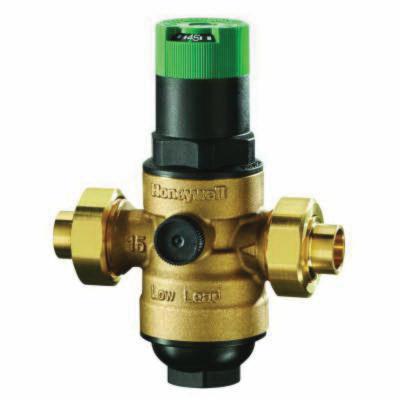

Honeywell Dial-Set™ DS06 Bronze Pressure Regulating Valve, 1 Inch, FNPT, 250 psi max Inlet

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: DS06-102-SUT-LFU
  • PSCN: 427119
  • UPC: 85267981767
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The Honeywell DS06 Dial Set® pressure regulating valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).

  • Built-in dial-set™, no gauge is needed to install or set static pressure
  • Noncorroding unitized cartridge, contains all working parts and is easily replaceable
  • The internal and external threading allows for use in thread-by-thread, single union or double-union configurations
  • 1/4 Inch NPT tap accessible from both sides to validate output
  • Built-in strainer to simplify maintenance

Standard/Approvals: ASSE 1003-2013 Certified, IAPMO Listed, CSA Certified, B356-10 and IAPMO Listed, Low Lead Compliant

Application: For Household, Commercial, Industrial And Turf-And-Irrigation Applications

Brand : Honeywell
Sub Brand : Dial-Set™
Series/Model : DS06
Item Name : Pressure Regulating Valve
Nominal Size : 1 Inch
Connection Type : Female NPT Threaded Inlet and Outlet Externally Threaded For Unions
Body Material : Bronze
Flow Capacity : 9.11 - 35.05 gpm
Pressure Rating : 250 psi Maximum Inlet
Temperature Rating : 140 deg F Maximum
Pressure Adjustment Range : 25 - 90 psi (Reduced)
Dimensions : 6-15/16 Inch Height x 5 Inch Length
