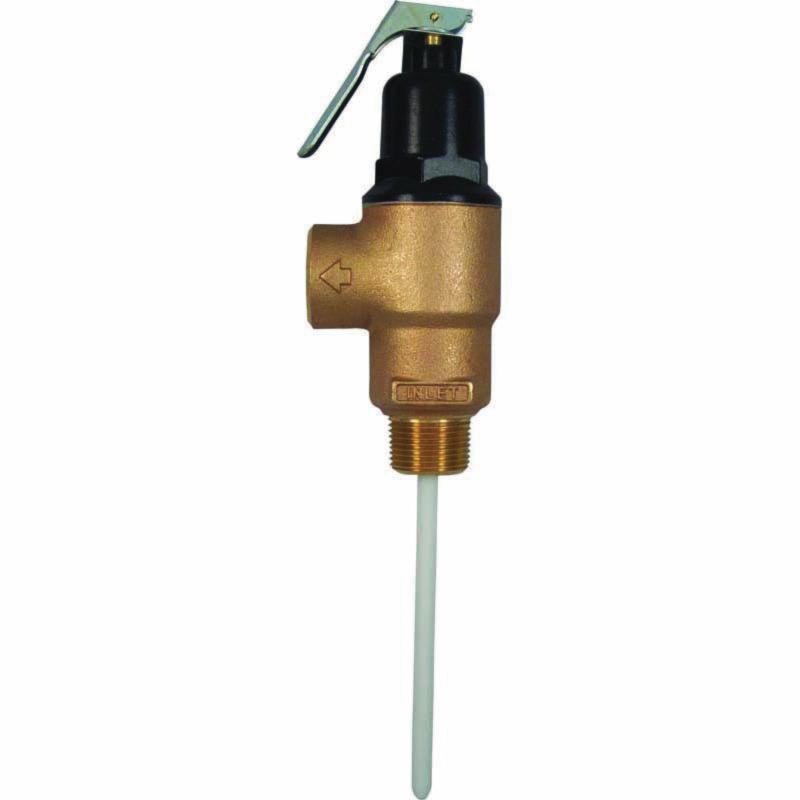

Cash Acme FVMX-4LS

Cash Acme FVMX Series Brass Long Shank Temperature and Pressure Relief Valve, 1 x 1 Inch, MNPT x FNPT, 75 - 150 psi

  • Mfg. Name: Cash Acme
  • Brand Name: Cash Acme
  • MPN: FVMX-4LS
  • PSCN: 421435
  • UPC: 697285503168
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The Cash Acme FV(M)X series combination temperature and pressure relief valves are designed to offer high capacity protection for domestic and commercial water heating devices. The Cash Acme FV(M)X series is fully automatic and the valves reseat after either temperature or pressure relief. The FV(M)X series valves are diaphragm guided, and they are suitable for installations where codes require complete shut-off. The larger FV(M)X series valves are well suited for such commercial applications as restaurants, hospitals, and laundries. The FV(M)X series offers a choice of either male (designated FVMX) or female (designated FVX) inlet connections.

  • Offers high capacity protection for domestic and commercial hot water heating devices, handles more volume with just one relief valve
  • Completely automatic, the valves reseat after either temperature or pressure relief
  • The larger series valves are well suited for commercial applications, restaurants, hospitals and laundries are no problem

Standard/Approvals: CSA Listed to ANSI Z21.22/CSA 4.4, NB Listed to ASME Boiler Code Section IV

Application: For Commercial And Domestic Hot Water Heating Applications

Brand : Cash Acme
Series/Model : FVMX Series
Item Name : Temperature and Pressure Relief Valve
Type : Long Shank, Commercial
Nominal Size : 1 x 1 Inch
Connection Type : MNPT x FNPT
Body Material : Brass
Seat : Silicone
Spring : Stainless Steel
Capacity : 500000 BTUH (CSA), 1165000 BTUH at 75 psi, 1495000 BTUH at 100 psi, 1825000 BTUH at 125 psi, 2155000 BTUH at 150 psi (ASME)
Pressure Rating : 75 - 150 psi
Temperature Rating : 210 deg F
Dimensions : 10.344 Inch Height
