Chicago Faucets 786-E3ABCP

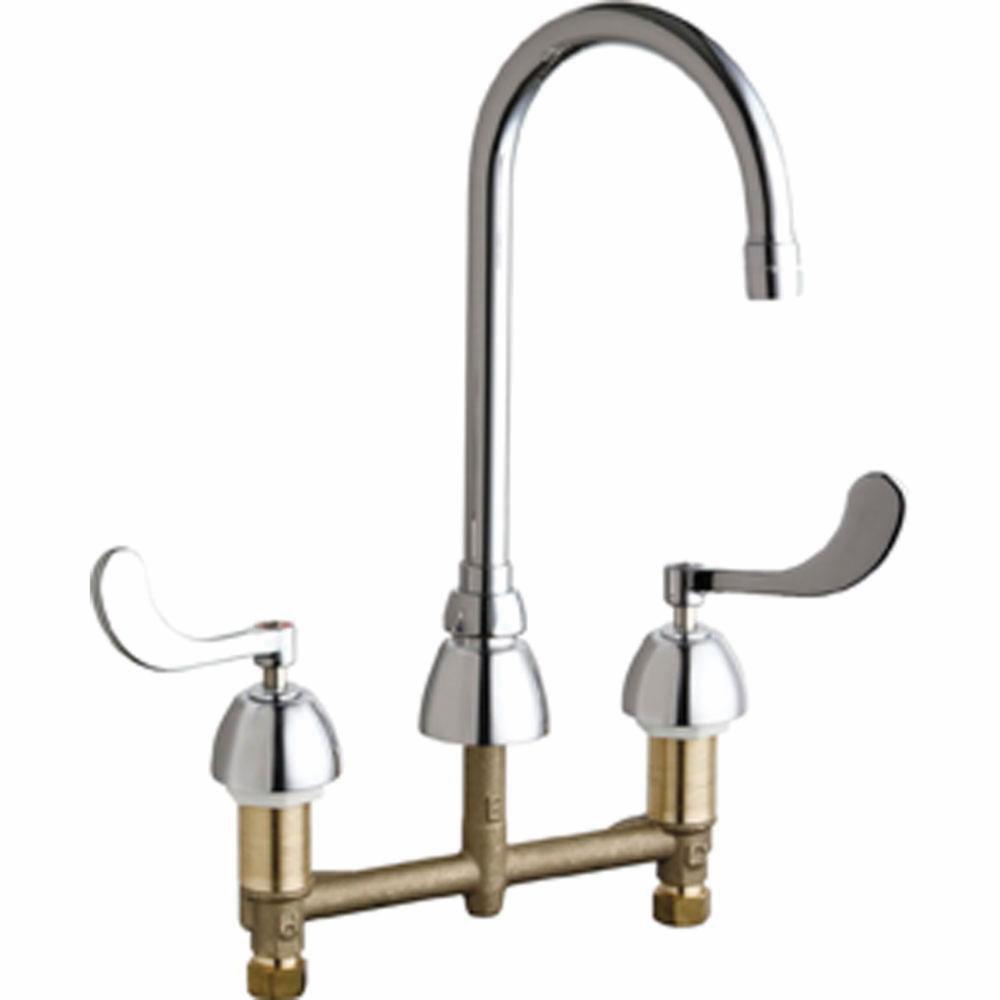

Chicago Faucets 786-E3AB Concealed Hot and Cold Water Sink Faucet, Chrome-Plated, 2.2 gpm, 8 Inch Center

  • Mfg. Name: Chicago Faucets
  • Brand Name: Chicago Faucets
  • MPN: 786-E3ABCP
  • PSCN: 403581
  • UPC: 611943449544
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • 8 Inch fixed centers
  • GN2AAB: 5-1/4 Inch rigid/swing gooseneck spout
  • E3AB: 2.2 gpm Softflo aerator
  • 317-PR: 4 Inch vandal proof wristblade handles with sixteen-point, tapered broach and secured blue and red index buttons
  • 377-XTAB: Quater-Turn compression operating cartridge, opens and closes 90 deg, closes with water pressure, features square, tapered stem
  • 1/2 Inch NPSM supply inlets and coupling nut for 3/8 Inch or 1/2 Inch flexible riser
  • ECAST® construction with equal to or less than 0.25% lead content by weighted average
  • Lifetime limited faucet warranty
  • 5-year limited cartridge warranty
  • 1-year limited finish warranty

Standard/Approvals: ASME A112.18.1/CSA B125.1, Certified To NSF/ANSI 61, Section 9 By CSA, California Health And Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, ADA ANSI/ICC A117.1

Brand : Chicago Faucets
Item Name : Concealed Hot and Cold Water Sink Faucet
Finish : Chrome-Plated
Material : Cast Brass
Number Of Faucet Holes : 2
Number Of Handles : 2
Handles Included : Yes
Handle Type : Wrist Blade
Spout Type : Rigid/Swing Gooseneck
Spout Reach : 5-3/8 Inch
Spout Height : 7-1/2 Inch
Connection Type : 1/2 Inch NPSM Inlet
Flow Rate : 2.2 gpm
Faucet Centers : 8 Inch
Soap Dispenser : No
Cartridge Type : 1/4 Turn Compression
Valve Type : 1/4 Turn
Valve Included : Yes
Maximum Deck Thickness : 1-3/8 Inch
Pull Out Spray Included : No
Supply Lines Included : No
Required Hole Diameter : 1-1/4 Inch
Dimensions : 16 Inch Length
ADA Compliant : Yes
WaterSense Labeled : No
