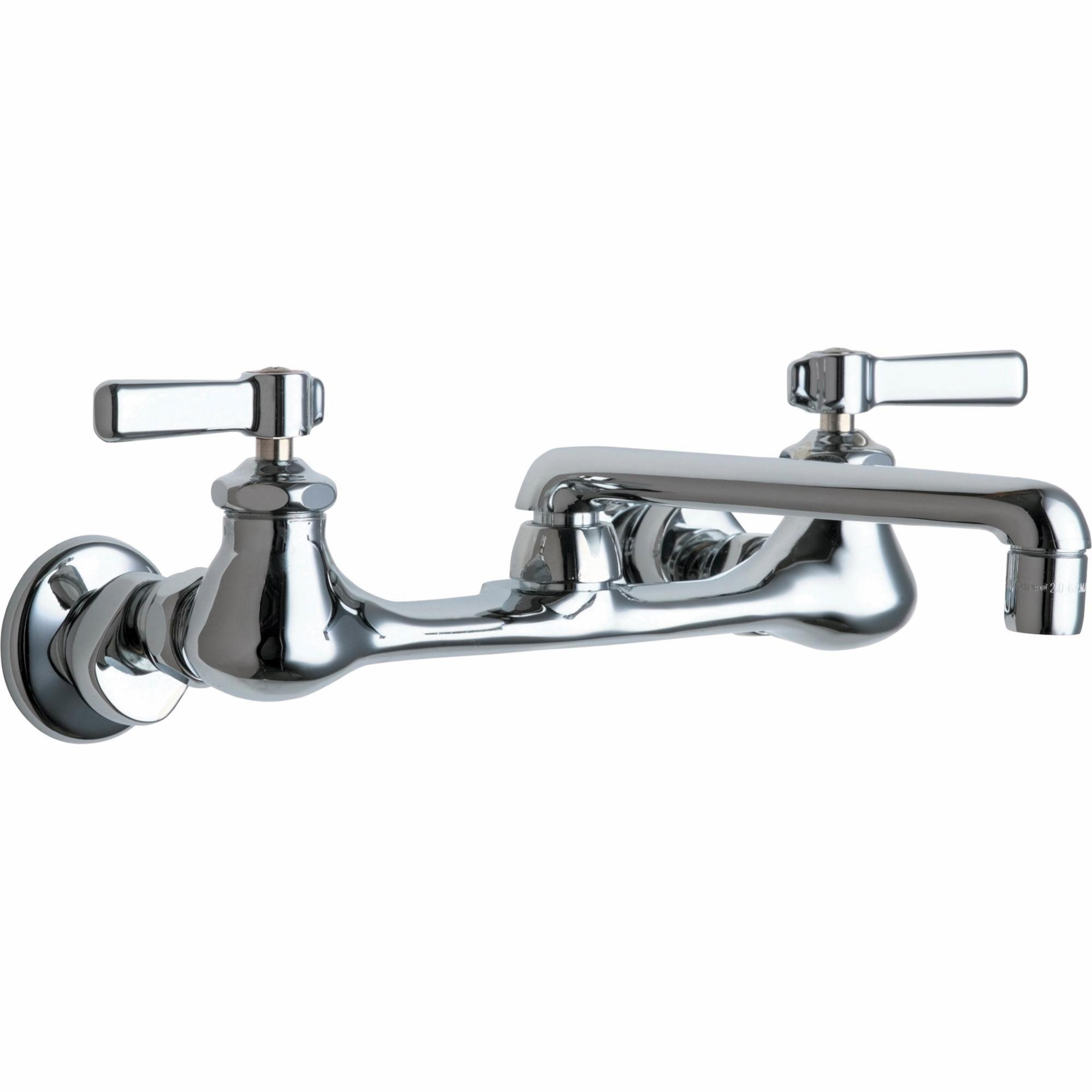

Chicago Faucets 540-LDABCP

Chicago Faucets 540-LDAB Hot and Cold Water Sink Faucet, Chrome-Plated, 2.2 gpm, 8 Inch Center

  • Mfg. Name: Chicago Faucets
  • Brand Name: Chicago Faucets
  • MPN: 540-LDABCP
  • PSCN: 402511
  • UPC: 611943475277
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • 8 Inch body, adjustable arms 7-1/4 - 8-3/4 Inch
  • S6AB: 6 Inch S type swing spout
  • E3AB: 2.2 gpm Softflo aerator
  • 369-PR: 2-3/8 Inch vandal proof lever handle with sixteen-point, tapered broach and secured blue and red index buttons
  • XTAB: quaturn compression operating cartridge, opens and closes 90 deg, closes with water pressure, features square, tapered stem
  • GAB: 3/8 Inch offset inlet supply arm with 1/2 Inch NPT female thread inlet
  • 2-5/16 Inch diameter slip flange
  • ECAST® construction with equal to or less than 0.25% lead content by weighted average
  • Lifetime limited faucet warranty
  • 5-year limited cartridge warranty
  • 1-year limited finish warranty

Standard/Approvals: ASME A112.18.1/CSA B125.1, Certified To NSF/ANSI 61, Section 9 By CSA, California Health And Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, ADA ANSI/ICC A117.1

Brand : Chicago Faucets
Item Name : Hot and Cold Water Sink Faucet
Finish : Chrome-Plated
Material : Cast Brass
Number Of Faucet Holes : 2
Number Of Handles : 2
Handles Included : Yes
Handle Type : Lever
Spout Type : Swing
Spout Reach : 6 Inch
Spout Height : 5/8 Inch
Connection Type : 1/2 Inch FNPT Inlet
Flow Rate : 2.2 gpm
Installation Type : Widespread
Faucet Centers : 8 Inch
Soap Dispenser : No
Cartridge Type : 1/4 Turn Compression
Valve Type : 1/4 Turn
Valve Included : Yes
Pull Out Spray Included : No
Supply Lines Included : No
Dimensions : 12-3/4 Inch Length
ADA Compliant : Yes
WaterSense Labeled : No
