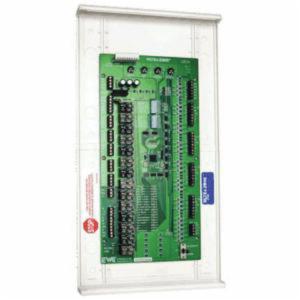

EWC UZC4

EWC Ultra-Zone™ UZC4 4 Stage Heating/2 Stage Cooling 4 Zone Control Panel, 40 - 100 VA, 24 VAC, 14 VA at 24 VAC Drawn

  • Mfg. Name: EWC Controls
  • Brand Name: EWC
  • MPN: UZC4
  • PSCN: 28205
  • UPC: 845484003457
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The UZC4 universal zone control system allows you to easily upgrade an inefficient single zone HVAC system, into an automated, multi-zone, energy saving, comfort producing, safety minded, HVAC system. With superior design, intuitive firmware, building code compliant support, simple setup options, and easy to understand wiring, the UZC4 zoning system is the designer/contractors dream. Combined with patented EWC motorized dampers and practically any Off-the-shelf conventional or heat pump style thermostats, EWC has set a new industry standard in large residential and commercial HVAC air zoning systems.

  • Staging via adjustable multi-stage thermostats, adjustable on-board timer or outdoor air sensor
  • 50% rule to limit staging if less than half the total zones are demanding heating or cooling
  • Variable speed fan reduction control, if less than 25% of total zones are demanding cooling
  • Fire alarm interlock feature, shuts down HVAC system and closes all connected dampers
  • Enhanced dehumidify feature and supply/return air temperature monitoring
  • Can be expandable to 20 zones using ZXM-2 expansion modules
  • Fresh air damper terminal block with indoor blower interlock, activated by Co2 dry contact closure
  • Up to 2 stages heating and 2 stages cooling for gas/electric/hydro and up to 4 stages heating and 2 stages cooling compatibility for heat pump conventional or dual fuel
  • 3/4 Inch knockouts available at top, bottom and back of molded impact resistant housing
  • 0 - 95% RH non-condensing humidity

Standard/Approvals: NEC Class 2 Standard

Brand : EWC
Sub Brand : Ultra-Zone™
Item Name : 4 Zone Control Panel
Type : 4-Stage Heating/2 Stage Cooling
KVA Rating : 40 - 100 VA
Primary Voltage : 24 VAC
Frequency Rating : 50/60 Hz
Electrical Rating : 14 VA at 24 VAC Drawn (Max)
Temperature Range : -20 to 160 deg F
Dimensions : 10 Inch Length x 1.7 Inch Width x 19.875 Inch Height
Includes : Model SAS Supply Air Sensor
