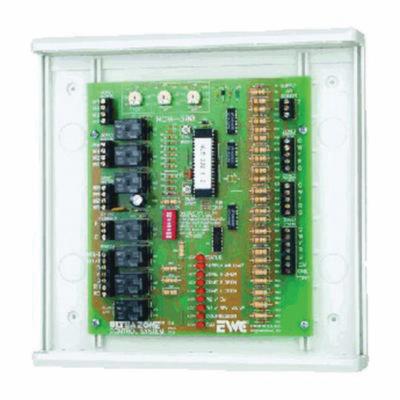

EWC NCM-300

EWC Ultra-Zone™ NCM-300 2 Stage Heating/1 Stage Cooling 2 - 3 Zone Control Panel, 40 - 60 VA, 19 - 30 VAC, 14 VA at 24 VAC Drawn

  • Mfg. Name: EWC Controls
  • Brand Name: EWC
  • MPN: NCM-300
  • PSCN: 28403
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The NCM 300 panel provides intelligent control of heat pump or conventional forced air zoning systems at a maximum of three zones using motorized dampers and practically any off-the-shelf heat/cool thermostat. With features like automatic changeover, opposite system service, short cycle timers and supply air sensing capability, the NCM 300 provides a high level of performance in a non-expandable zone control panel.

  • Staging via adjustable on-board timer
  • Supply air temperature monitoring to help protect HVAC equipment
  • Enhanced hydro-air capabilities, can delay fan activation on heating demand
  • Adjustable purge time (90 or 120 sec)
  • On board LED's indicate system operation
  • Up to 2 stages heating and 1 stages cooling compatibility for gas/electric/hydro and for heat pump conventional or dual fuel
  • 0 - 95% RH non-condensing humidity

Standard/Approvals: NEC Class 2 Standard

Brand : EWC
Sub Brand : Ultra-Zone™
Item Name : 2 - 3 Zone Control Panel
Type : 2 Stage Heating/1-Stage Cooling
KVA Rating : 40 - 60 VA
Primary Voltage : 19 - 30 VAC
Frequency Rating : 60 Hz
Electrical Rating : 14 VA at 24 VAC Drawn (Max)
Temperature Range : -20 to 160 deg F
Dimensions : 10 Inch Length x 1.7 Inch Width x 9.875 Inch Height
Includes : Model SAS Supply Air Sensor
