EWC BMPLUS3000

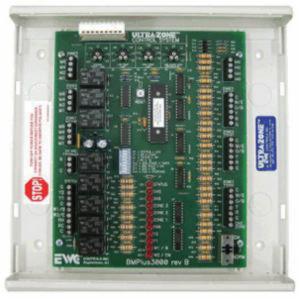

EWC Ultra-Zone™ BMPLUS3000 3 Zone Control Panel, 40 - 75 VA, 18 - 30 VAC, 15 VA at 24 VAC Drawn

  • Mfg. Name: EWC Controls
  • Brand Name: EWC
  • MPN: BMPLUS3000
  • PSCN: 26660
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The new BMPlus 3000 series of control panels are designed for optimum performance and superior comfort. The BMPlus is expandable up to seven zones using the XM-2 expansion panel.

  • Staging via adjustable on-board timer or outdoor air sensor
  • 50% rule to limit staging if less than half the total zones are demanding heating or cooling
  • Supply air temperature monitoring to help protect HVAC equipment
  • 100% dual fuel compatible
  • On board LED's indicate system operation
  • Can be expandable to 5 or 7 zones with the addition of 1 or 2 Model XM-2 expansion modules
  • Up to 2 stages heating and 2 stages cooling for gas/electric/hydro and up to 3 stages heating and 2 stages cooling compatibility for heat pump conventional or dual fuel
  • 18 ga solid copper wire wiring
  • 0 - 95% RH non-condensing humidity

Standard/Approvals: NEC Class 2 Standard

Brand : EWC
Sub Brand : Ultra-Zone™
Item Name : 3 Zone Control Panel
KVA Rating : 40 - 75 VA
Primary Voltage : 18 - 30 VAC
Frequency Rating : 50/60 Hz
Electrical Rating : 15 VA at 24 VAC Drawn (Max)
Temperature Range : -20 to 160 deg F
Dimensions : 10 Inch Length x 1.7 Inch Width x 9.875 Inch Height
Includes : Model SAS Supply Air Sensor
