Bell & Gossett 110196

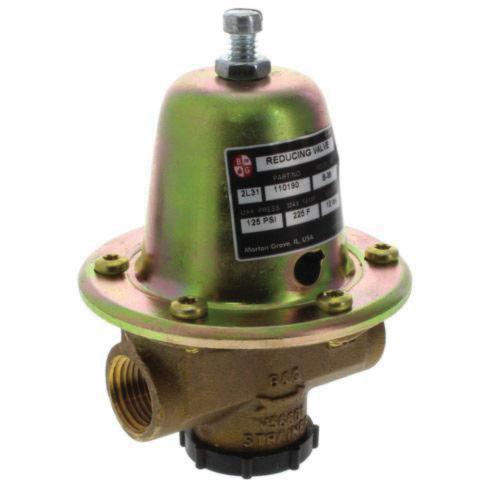

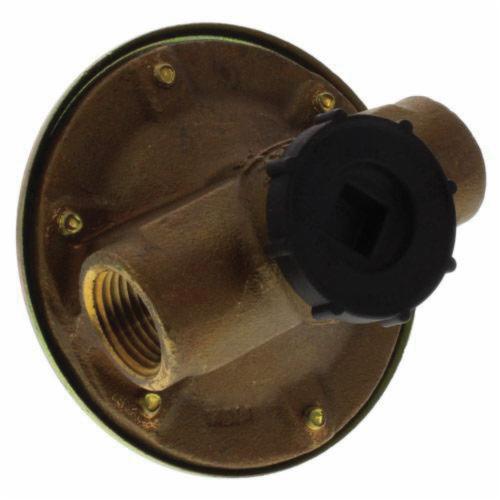

Bell & Gossett B7-12 Brass Straight Reducing Valve, 3/4 Inch, FNPT x FNPT

  • Mfg. Name: Bell & Gossett
  • Brand Name: Bell & Gossett
  • MPN: 110196
  • PSCN: 5490
  • UPC: 683328101965
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

B & G reducing valves protect heating and plumbing systems against excessive line pressures. They are factory set at specified limits although adjustment is easily made. Equipped with built-in-strainer and low inlet pressure check valve.

Brand : Bell & Gossett
Series/Model : B7-12
Item Name : Reducing Valve
Type : Straight
Nominal Size : 3/4 Inch
Connection Type : FNPT x FNPT
Body Material : Brass
Seat : Brass
Flow Capacity : 5-1/2 - 6 gpm
Pressure Rating : 125 psi WOG
Temperature Rating : 225 deg F
Pressure Adjustment Range : 10 - 25 lb
Setting Pressure : 12 psig Factory
Dimensions : 3 Inch Width x 5-1/32 Inch Height
