Uponor Wirsbo A1220500

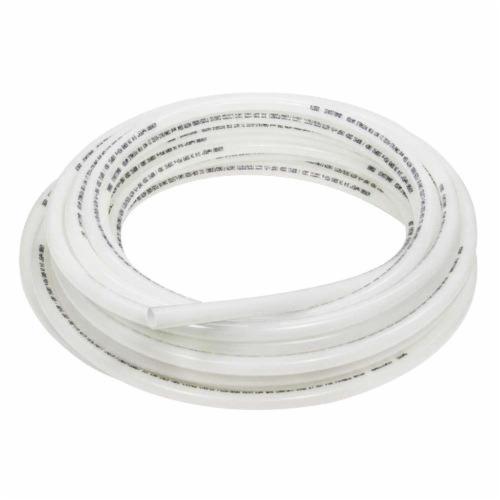

Uponor Wirsbo HePEX™ A1220500 Barrier Tubing, 1/2 Inch, 1000 ft, White

  • Mfg. Name: Uponor Wirsbo
  • Brand Name: Uponor Wirsbo
  • MPN: A1220500
  • PSCN: 20840
  • UPC: 673372123044
  • Min. Ord. Qty: 1000
  • Qty. Interval: 1000
Retail Price:
Qty
My List
Add / Remove CPN

Wirsbo hePEX™ is the premium PEX-a tubing for closed-loop hydronic piping and radiant heating and cooling applications. The tubing, which has more than 40-years of proven performance with billions of feet in service worldwide, is available in a wide range of pipe diameters and coil lengths and is backed by a 30-year limited warranty.

  • It has an oxygen diffusion barrier that meets German DIN 4726/9
  • A polyethylene layer is extruded over the oxygen barrier to protect from site abuse and moisture saturation
  • Wirsbo hePEX is rated and listed by the Hydrostatic Stress board of PPI at 200 deg F at 80 psi, 180 deg F at 100 psi and 73.4 deg F at 160 psi
  • The tubing is compatible with Uponor's ProPEX and Quick Seal (QS) fittings and is manufactured in full compliance to ASTM F876 (including dimensional requirements for barrier tubing) and ASTM F877
  • Wirsbo hePEX is also listed to NSF 61 for potable-water applications (to help eliminate jobsite waste)

Standard/Approvals: ANSI/NSF 14 And 61, ASTM F876, F877, F1960, F2023, E84, ASTM E119/UL 263, ASTM E814/ULC S115, CAN/ULC S102.2, S101, AWWA C904, CSA B137.5, B214 Certified, UL Listed, IAPMO Certification, ETL Listed, cNSFus-rfh, cNSFus-pw, cQAIus P321, PPI TR-4, ICC-ES, CCMC Listing

Application: For Radiant Heating And Cooling Systems, Snow And Ice Melting Systems, Permafrost Protection Systems, Turf Conditioning Systems, Chilled Water Distribution, Hot Water Distribution

Brand : Uponor Wirsbo
Sub Brand : HePEX™
Item Name : Barrier Tubing
Nominal Size : 1/2 Inch
Connection Type : Crimp/Clamp
Inside Diameter : 0.475 Inch
Outside Diameter : 5/8 Inch
Length : 1000 ft
Material Specification : Crosslinked Polyethylene PEX-a Engel Method
Color : White
Maximum Pressure Rating : 160 psi Maximum
Temperature Rating : 200 deg F Maximum
Thermal Conductivity : 0.22 BTU/hr/ft/deg F
