Robertshaw 2374-510

Robertshaw 2374-510 Universal Adjustable Air Pressure Sensing Switch Kit, 0.10 - 10 Inch WC, SPDT

  • Mfg. Name: Robertshaw
  • Brand Name: Robertshaw
  • MPN: 2374-510
  • PSCN: 400502
  • UPC: 020967745103
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The Robertshaw® 2374-510 air pressure sensing switch has a glass-filled polycarbonate housing containing a sensing diaphragm and an integral snap-acting switch with three male 90 deg quick-connect terminals. The switch can sense positive, negative or differential air pressure. The field adjustable set point range of this switch is 0.10 Inch WC to 10.0 Inch WC. Using the switch accessories contained in this kit, the switch can be applied to a wide variety of residential and light commercial HVAC applications.

  • The new Universal air pressure sensing switch has field adjustable set points using the included adjustment tool
  • The switch comes in a contractor kit that includes the hardware and replacement hose
  • Like other Robertshaw air pressure sensing switches, this switch is NEMA rated and is practically insensitive to temperature change with an operating range of -40 to +190 deg F

Application: For Wide Variety Of Residential And Light Commercial HVAC Applications, Gas Fired Units

Brand : Robertshaw
Item Name : Air Pressure Sensing Switch Kit
Type : Universal, Adjustable
Connection Size : 1/4 Inch
Connection Type : Spade
Contact Configuration : SPDT
Temperature Rating : -40 to 190 deg F
Pressure Rating : 0.10 - 10 Inch W.C., Overpressure: 14 Inch W.C

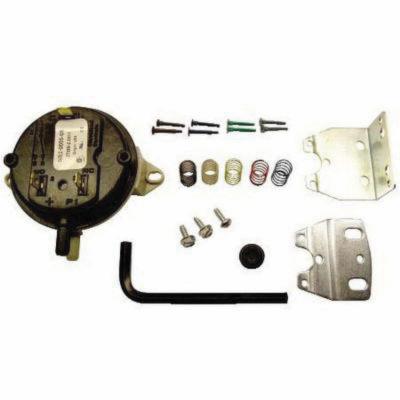

Includes : Air Pressure Sensing Switch, Calibration Springs (5 Options), Orifice Flows (4 Options), Mounting Brackets (2 Options), Calibration Tool (Hex Wrench)
