Robertshaw 1950-001

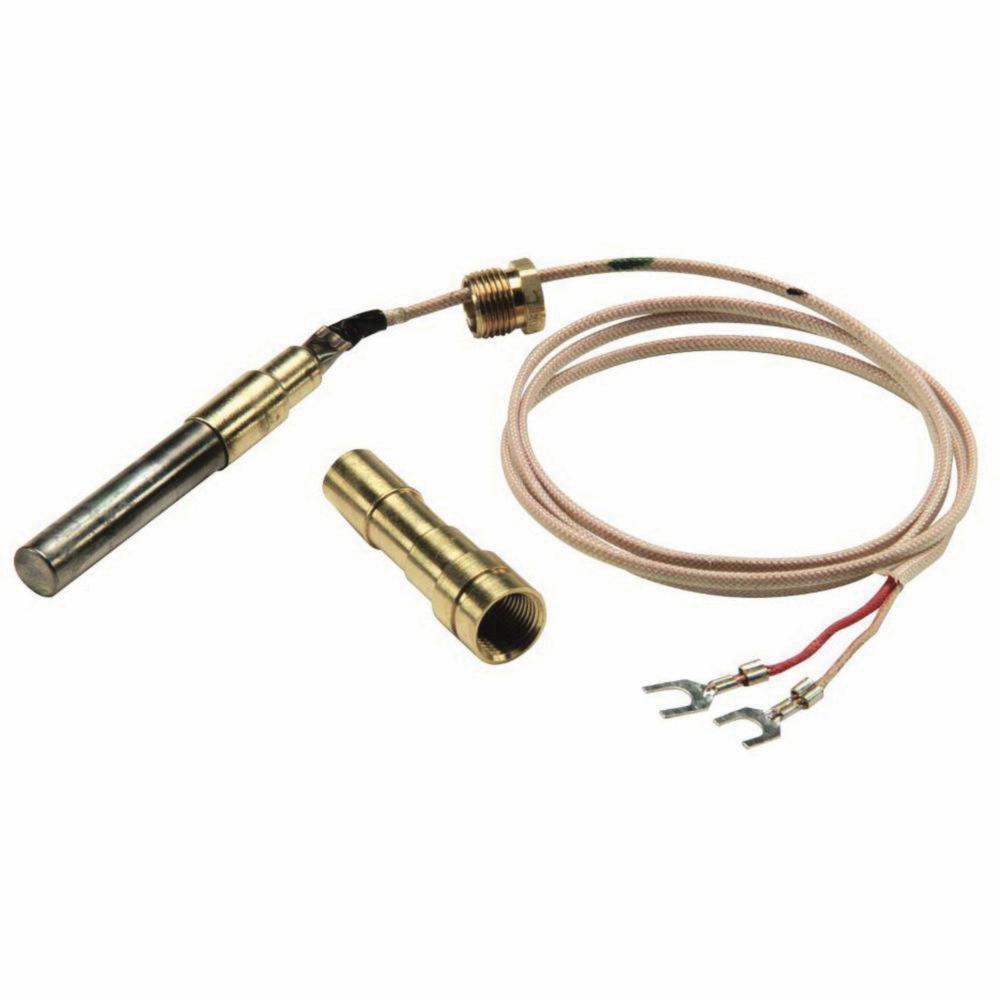

Robertshaw 1950 Series CP-2 Pilot Generator Thermopile, 250 to 750 milli-volt AC, 36 Inch L Lead

  • Mfg. Name: Robertshaw
  • Brand Name: Robertshaw
  • MPN: 1950-001
  • PSCN: 411048
  • UPC: 662013637309
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Robertshaw® thermopiles are the industry leader for gas appliance applications. Their primary function is to ensure a standing pilot light is operative so that on a call for heat, the main burner gas will be properly ignited. Thermopiles are placed in gas applications to detect the existence of a flame for safety purposes by shutting off the potential gas flow to a burner. A thermopile is the assembly of many thermocouples to increase the millivolt output. Robertshaw thermopiles have two types of connections: coaxial and two-wire spade connectors. The 1950 series thermopiles, also known as TP-75, are two-wire spade connectors. The 1950 and 1951 series thermopiles (pilot generators) are designed for use on self-powered gas control systems. They can be used to replace similar competitive devices. It includes PG9 Pilot adaptor.

  • Easy burner installation with attached threaded nut
  • Stainless steel outer jacket for long life and resistance to heat blistering
  • Combination of copper and nickel alloys for good electrical conductivity
  • Mica washer to insulate from shorting conditions
  • Tinnerman clip included

Standard/Approvals: CSA, ISO 9001 - 2008 Certified

Application: For Gas Appliances

Brand : Robertshaw
Series/Model : 1950 Series
Item Name : Pilot Generator Thermopile
Connection Type : Two Lead, Male Connector Nut
Voltage Rating : 250 - 750 mV AC
Includes : PG9 Pilot Adaptor
Tip Style : CP-2
