McDonnell & Miller 176234

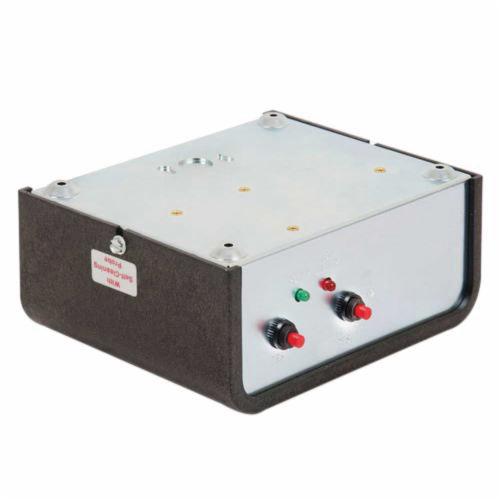

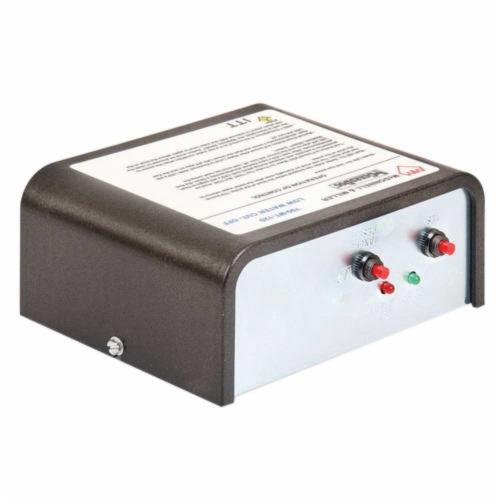

McDonnell & Miller Xylem ITT GuardDog 751P Series Electronic Low Water Cut-Off, 120 VAC, 3/4 Inch NPT

  • Mfg. Name: McDonnell & Miller
  • Brand Name: McDonnell & Miller
  • MPN: 176234
  • PSCN: 346298
  • UPC: 751875045107
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Manual reset models meet the requirements of ASME Standard CSD-1. If the control is in a low water condition when there is an interruption of power, the control will remain in a low water condition when power is restored. The reset button will need to be pressed when the water level is restored to a level above the probe to allow the burner to fire.

  • Primary or secondary control on hot water boilers
  • Secondary control (manual reset models only) on steam boilers
  • Green LED power indicating light
  • Red LED low water indicating light
  • Test switch
  • 20,000 ohms sensitivity

Standard/Approvals: UL Listed, CSA Certified, FM Approved, ASME Standard CSD-1

Application: For Commercial or Industrial Applications

Brand : McDonnell & Miller
Sub Brand : Xylem, ITT, GuardDog
Series/Model : 751P-MT-120, 751P Series
Item Name : Low Water Cut-Off
Type : Electronic
Electrical Ratings(ALR/AFL) : Motor Switch: 7.2 A at 120 VAC (Full Load)/43.2 A at 120 VAC (Locked Rotor), Pilot Duty: 125 VA, Power Consumption: 3 VA, 50/60 Hz
Pressure Rating : 160 psi (Water), 15 psi (Steam)
Temperature Rating : 32 - 135 deg F (Ambient), -40 to 135 deg F (Storage)
Reset Type : Manual
Connection Type : 3/4 Inch NPT
Voltage Rating : 120 VAC
Width : 6-3/8 Inch
Depth : 5-1/8 Inch
