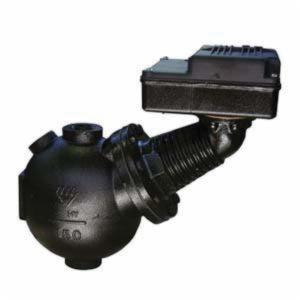

McDonnell & Miller 171802

McDonnell & Miller Xylem ITT 150S-MD Series Combination Float-Style Low Water Cut-Off, 120/240 VAC, 1 Inch NPT

  • Mfg. Name: McDonnell & Miller
  • Brand Name: McDonnell & Miller
  • MPN: 171802
  • PSCN: 16858
  • UPC: 751875036099
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • Monel bellows provides corrosion resistance
  • Snap action switches for high temperature service
  • 1-pole, single throw switch for pump control
  • 1-pole, double throw switch for low water cut-off and alarm actuation
  • Model 150S-MD has maximum differential operation
  • Prevents nuisance burner shutdowns in low pressure applications

Standard/Approvals: UL Listed, CSA Certified, FM Approved

Application: For Boilers of Any Steaming Capacity

Brand : McDonnell & Miller
Sub Brand : Xylem, ITT
Series/Model : 150S-MD Series
Item Name : Low Water Cut-Off
Type : Combination, Float-Style
Switch Type : SPST/SPDT
Electrical Ratings(ALR/AFL) : Motor Switch: 7.4 A at 120 VAC, 3.7 A at 240 VAC (Full Load)/44.4 A at 120 VAC, 22.2 A at 240 VAC (Locked Rotor), Pilot Duty Rating: 345 VA
Pressure Rating : 150 psi, 50 psi Operating
Reset Type : Automatic
Connection Type : 1 Inch NPT
Voltage Rating : 120/240 VAC
Length : 12-7/16 Inch
Width : 6 Inch
Depth : 13-1/4 Inch
