Tekmar 265

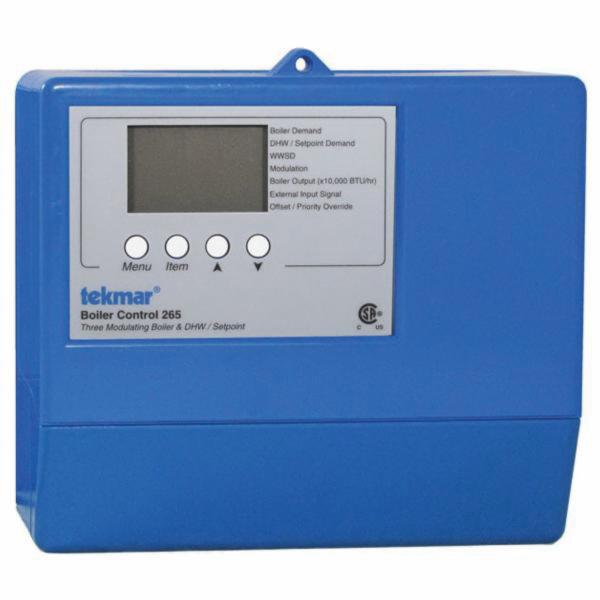

Tekmar 265 PVC Plastic Enclosure 3-Stage Boiler Control and DHW/Setpoint, 60 Hz, 600 VA, Blue

  • Mfg. Name: Tekmar
  • Brand Name: Tekmar
  • MPN: 265
  • PSCN: 28622
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The boiler control 265 is designed to stage multiple modulating boilers using outdoor temperature reset. It can be used in applications ranging from baseboard or radiant heating systems, to dedicated domestic hot water heating in commercial buildings. This control regulates a single heating water temperature through outdoor temperature reset and/or setpoint/DHW control. It is capable of controlling (stage and rotate) up to 3 modulating boilers by using a native 4-20 mA (or 0-20 mA) signal that can be converted to 2-10 VDC or 0-10 VDC, as well as the system pump.

  • Advanced settings to fine-tune building requirements
  • Pump exercising
  • Boiler pump operation
  • Control up to 3 modulating boilers
  • Optional DHW priority
  • DHW pump or valve operation
  • Equal run time rotation
  • Automatic boiler differential
  • Outdoor temperature reset
  • Powered system pump output
  • Quick setup for easy installation and programming of control
  • Setback input for energy savings
  • Test sequence to ensure proper component operation
  • User comfort adjustment to increase or decrease building space temperature
  • Warm weather shut down

Standard/Approvals: C/US CSA Listed, Meets Class B: ICES & FCC Part 15, NEMA Type 1 enclosure

Item Name : Boiler Control and DHW/Setpoint
Voltage Rating : 260 V
Control : Microprocessor
User Interface : Push Button, LCD
