Tekmar 261

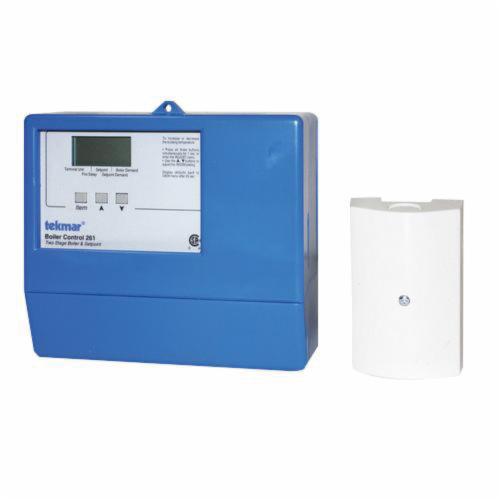

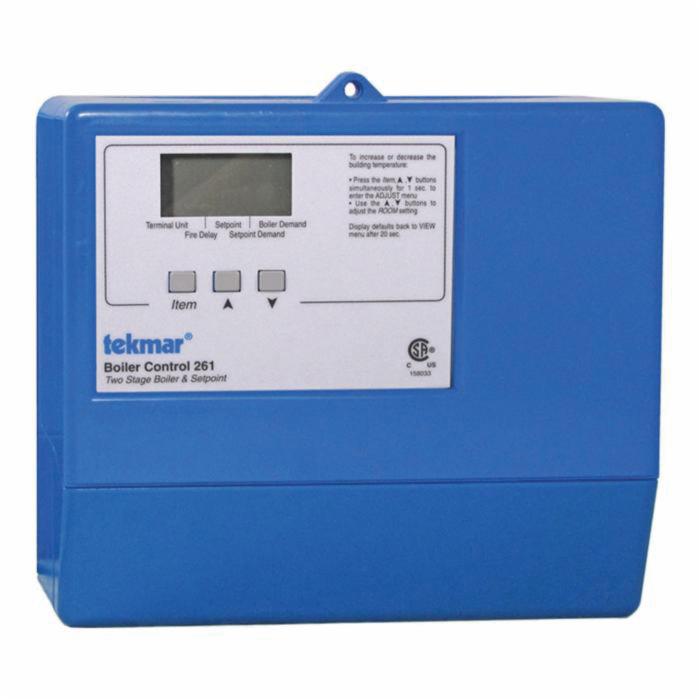

Tekmar 261 PVC Plastic Enclosure 2 Stage Boiler Control With Setpoint, 50/60 Hz, 1300 VA, Blue

  • Mfg. Name: Tekmar
  • Brand Name: Tekmar
  • MPN: 261
  • PSCN: 9296
  • UPC: 703765991193
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The boiler control 261 is designed to stage two on/off boilers using outdoor temperature reset. It can be used in applications ranging from a single zone of baseboard, multiple baseboard and fan coil zones, to dedicated setpoint heating in commercial buildings. This control regulates a single heating water temperature through outdoor temperature reset and/or setpoint target control. It is capable of controlling (stage and rotate) up to 2 on/off boilers, or a single 2 stage boiler, as well as the system pump.

  • 2-stage boiler control
  • Advanced settings to fine-tune building requirements
  • Pump exercising
  • Automatic boiler differential
  • Outdoor temperature reset
  • Powered boiler pump output
  • Quick setup for easy installation and programming of control
  • Setback input for energy savings
  • Test sequence to ensure proper component operation
  • User comfort adjustment to increase or decrease building space temperature
  • Warm weather shut down

Standard/Approvals: C/US CSA Listed, Meets Class B: ICES & FCC Part 15, NEMA Type 1 enclosure

Item Name : Boiler Control with Setpoint
Voltage Rating : 240 V
Control : Microprocessor
User Interface : Push Button, LCD
