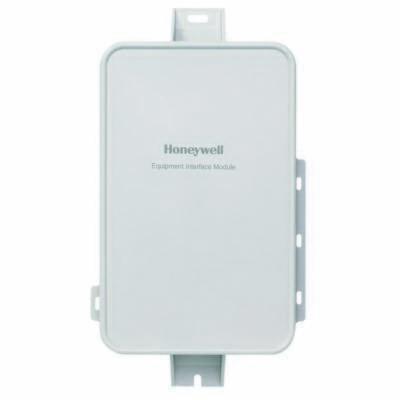

Honeywell THM5421R1021

Honeywell Prestige® THM5421R 4-Stage Heat/2 Stage Cool 2 Wire IAQ Equipment Interface Module For All THX9421R5021 Prestige® 2 Wire IAQ Thermostats, 18 - 30 VAC

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: THM5421R1021
  • PSCN: 406839
  • UPC: 085267328180
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Equipment Interface Module controls up to 4-stages of heat and 2-stages of cool in a heat pump system and up to 3-stages of heat and 2-stages of cool in a conventional system. Three sets of Universal IAQ contacts to control humidification, dehumidification, and ventilation. Four sensor inputs for wired sensors or dry contact devices.

  • Three sets of Universal IAQ contacts to control humidification, dehumidification, and ventilation
  • Four sensor inputs for wired sensors or dry contact devices
  • Used with all versions of prestige IAQ thermostats and the New RedLINK VisionPRO thermostats

Application: For Gas, Oil, Electric, Heat Pump, Forced Warm Air, Hot Water, Steam Or Gravity

Brand : Honeywell
Sub Brand : Prestige®
Item Name : IAQ Equipment Interface Module
Series/Model : THM5421R
Type : 2 Wire
Number Of Heat Stages : 4
Number Of Cool Stages : 2
Terminal Designation : R, RC, RH, C, W-O/B, W2-AUX1, W3-AUX2, Y, Y2, G, A-L/A, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4, A, B, C, D
Power Source : Hardwired
Voltage Rating : 18 - 30 VAC
Amperage Rating : Cool, Heat: 1 A; Fan: 0.5 A
Frequency Rating : 50/60 Hz
Color : Gray
Height : 9-5/16 Inch
Width : 4-13/16 Inch
Depth : 1-5/8 Inch
Includes : THM5421R1021 Equipment Interface Module
For Use With : All THX9421R5021 Prestige® 2 Wire IAQ Thermostats And All Versions of Prestige® IAQ Thermostats And the VisionPro® Thermostats With RedLINK™ Technology
Operating Humidity : 5 - 95% RH, Non-Condensing
Operating Temperature : -40 to 165 deg F
