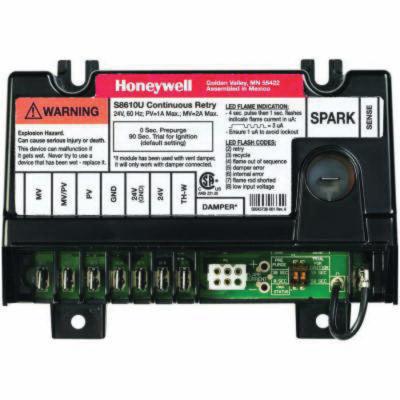

Honeywell S8610U3009

Honeywell S8610U Universal Intermittent Pilot Ignition Module For Use in Single Rod or Dual Rod/Remote Sense Applications, 24 VAC

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: S8610U3009
  • PSCN: 2699
  • UPC: 85267268363
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Universal intermittent pilot ignition module replaces multiple field installed intermittent pilot modules supplied by Honeywell, Robertshaw, Johnson, and UTEC (HSC). Uses existing intermittent pilot burner. Includes cross reference, instructions, and accessories for easy replacement.

  • Replaces over 400 White-Rogers, Robertshaw and Honeywell intermittent pilot ignition modules
  • Provides ignition sequencing, flame monitoring and safety shutoff for intermittent pilot warm air furnaces and heating appliances
  • Provides 100 percent pilot gas shutoff if pilot fails to light; after 6-minute delay, trial for ignition is repeated. Ignition trial/delay sequence is repeated until the appliance lights or call for heat is removed
  • For use with natural or LP gas
  • Includes spark cable adapters to allow field replacement of both Honeywell and competitive controls without replacing existing spark cable

Standard/Approvals: CSA Certified

Application: For Use In Single Rod Or Dual Rod/Remote Sense Applications

Brand : Honeywell
Series/Model : S8610U
Item Name : Universal Intermittent Pilot Ignition Module
Voltage Rating : 24 VAC
Amperage Rating : Maximum Valve Load at 24 VAC: 1 A Pilot, 2 A Main at 165 deg F, 1 A Pilot, 1 A Main at 175 deg F
Temperature Rating : -40 to 165 deg F
Length : 5-7/16 Inch
Width : 2-5/8 Inch
Height : 3-15/16 Inch
Includes : Spark Cable Adapters, Damper Connection with Automatic Vent Damper Plug
