Grundfos 52722355

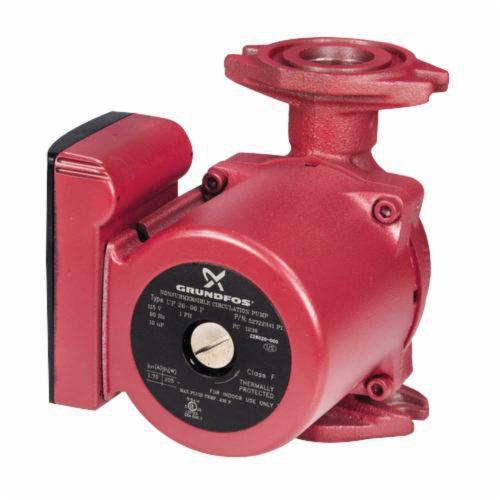

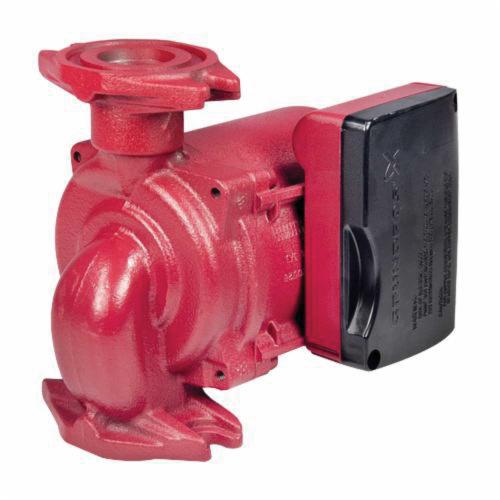

Grundfos UP 26-99 F 1/6 hp Circulator Pump, GF 15/26 Flange, 34 gpm, 6-1/2 Inch H

  • Mfg. Name: Grundfos
  • Brand Name: Grundfos
  • MPN: 52722355
  • PSCN: 5742
  • UPC: 5700391376801
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • Built-in motor protection for long life
  • Multiple accessories for a variety of applications
  • Whisper-quiet operation for sound sensitive installations

Standard/Approvals: C/US UL Listed, UP 26-99 F/BF, UP 26-99 BF, UL Classified Water Quality ANSI/NSF 61

Application: For Hydronic Heating, Fan Coil Heating, Solar Heating And Radiant Heating Systems

Brand : Grundfos
Item Name : Circulator Pump
Series/Model : UP 26-99 F
Connection Type : GF 15/26 Flange
HP Rating : 1/6 hp
Maximum Flow : 34 gpm
Voltage Rating : 115 V
Material : Cast Iron
Amperage Rating : 2.15 A
Pressure Rating : 145 psi Maximum
Temperature Rating : Liquid: 36 - 230 deg F
Maximum Head : 32 ft
Head Range : 0 - 32 ft
RPM : 3000 Rpm
Phase : 1
Number Of Poles : 2
Dimension : 6-3/8 Inch Width x 6-1/2 Inch Height
Frequency Rating : 60 Hz
