Grundfos 98420224

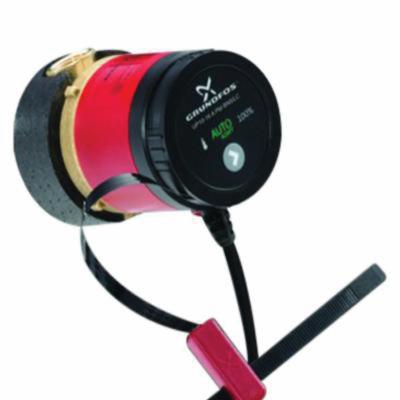

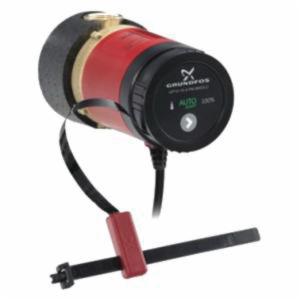

Grundfos UP10-16 A PM BU Hot Water Recirculation Pump, NPSM Union Threaded, 2.2 gpm

  • Mfg. Name: Grundfos
  • Brand Name: Grundfos
  • MPN: 98420224
  • PSCN: 23605
  • UPC: 5711494712892
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The comfort PM auto range sets new standards for energy-efficient hot water re-circulation in residential homes. A low noise permanent magnet motor, energy consumption is reduced to as little as 5 - 8.5 W. Utilizing auto adapt ensures the pump only runs when required. The result is maximum comfort with lower wait times for hot water, reducing water and electrical waste. The intelligent auto adapt function learns the hot water consumption pattern of the household and adapts to it. Every time hot water is tapped, the temperature in the hot water pipes changes as soon as the hot water is led from the water heater. This is registered via the external temperature sensor mounted on the hot water pipe and stored in a tapping calendar. The tapping calendar covers two week's tapping history at all times to make sure that the different consumption patterns of workdays and weekends are taken into account. Has the pump been on standby for 8 hr the system is automatically flushed for 15 min.

  • High-efficiency ECM technology
  • Alpha plug, dry running protection and 3 operation modes - 3 pumps in 1
  • Backwards compatible, savings of up to 96% electrical energy and 48% heat energy compared to conventional hot water re-circulation pumps
  • 6 ft line cord standard feature
  • Disinfection and flushing function, holiday mode, low noise
  • Lead free brass housing eliminates risk of corrosion
  • Compact design, facilitates installation in confined spaces
  • Easy installation and operation

Standard/Approvals: C/US UL Listed, UL Classified Water Quality ANSI/NSF 61

Brand : Grundfos
Item Name : Recirculation Pump
Series/Model : UP10-16 A PM BU
Type : Hot Water
Nominal Pipe Size : 1-1/4 Inch
Connection Type : NPSM Union Threaded
Maximum Flow : 2.2 gpm
Voltage Rating : 115/208 - 230 V
Material : Brass Housing
Cord Length : 6 ft
Amperage Rating : 0.23 A
Pressure Rating : 145 psi Maximum
Temperature Rating : Liquid: 36 - 185 deg F
Maximum Head : 3.9 ft
Head Range : 0 - 3.9 ft
Phase : 1
Dimension : 6-1/4 Inch Length x 3.28 Inch Width x 4.33 Inch Height
Includes : Aquastat Line Cord
