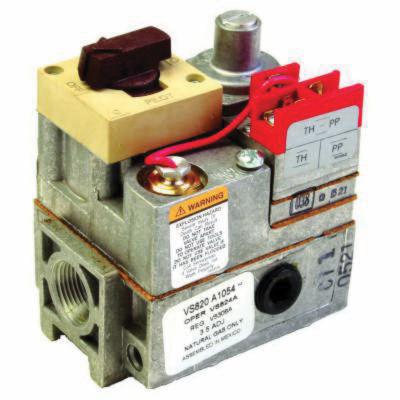

Honeywell VS820A1336

Honeywell VS820 Standard Opening Gas Valve For Self-Powered Automatic Control, 750 Mv Pilot Generator, 3/4 Inch NPT x 3/4 Inch NPT Inlet With 1/2 Inch NPT Outlet

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: VS820A1336
  • PSCN: 16655
  • UPC: 85267115490
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

These gas controls combine a Lite-Rite manual gas cock, safety shutoff Pilotstat assembly, millivoltage automatic valve operator, and optional gas pressure regulator. They require the use of a 750 mV Powerpile generator (thermopile). The generator, heated by the pilot burner flame, provides the electrical energy to operate the combination gas control. A millivoltage thermostat with suitable accessory controls completes the automatic control system for the heating appliance.

  • Easy to install, adjust and service, all adjustments and connections are accessible from top of control
  • Add separate energy cutoff (ECO) where codes call for dual safety shutoff
  • Complete safety shutoff on pilot flame failure
  • Lite-Rite (off-pilot-on) lighting sequence

Standard/Approvals: UL Listed MCCZ2.MH5323, CSA Certified International: 112395

Application: For Self-Powered Automatic Control, Use With 750 Mv Pilot Generator

Brand : Honeywell
Series/Model : VS820
Item Name : Standard Opening Gas Valve
Connection Type : Electrical: Combination Screw and 1/4 Inch Male Quick Connects
Voltage Rating : 750 mV
Dimensions : 4-1/16 Inch Width x 3-3/16 Inch Depth x 4-3/4 Inch Height
Temperature Rating : 32 - 175 deg F
Includes : (2) Bushings 3/4 Inch NPT - 1/2 Inch NPT and 1/2 Inch NPT - 3/8 Inch NPT, Pilot Flow Adjustment Screw
Pressure Rating : 1/2 psi
Capacity : At 1 Inch WC p.d. 335000 BTU/hr: 34000 - 425000 BTU/hr
Pressure Tapping : 1/8 Inch NPT with Plug
