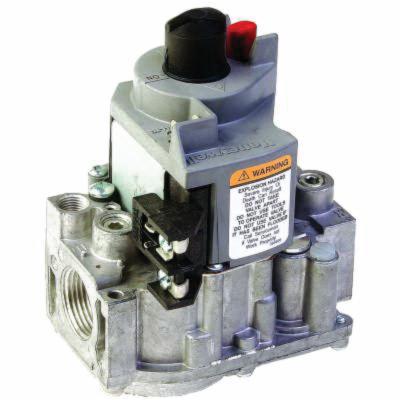

Honeywell VR8300A4508

Honeywell VR8300 Standing Pilot Gas Valve For Single Stage Application, 3/4 Inch x 3/4 Inch

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: VR8300A4508
  • PSCN: 16577
  • UPC: 85267113847
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Gas valvesl for use in 24 VAC, gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

  • Gas valves include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
  • Compact size
  • Provide two automatic valves
  • Solenoid-operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
  • Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
  • Meets codes requiring dual safety shutoff
  • Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves, not for step opening gas valves
  • All adjustments, wiring connections and pilot outlet are accessible from top of control
  • Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
  • Compatible with ECO connector
  • Lite-Rite (off-pilot-on) lighting sequence

Standard/Approvals: UL Listed MCCZ2.MH5323, CSA Certified International: 112395

Application: For Single Stage Application

Brand : Honeywell
Series/Model : VR8300
Item Name : Pilot Gas Valve
Type : Standing
Connection Type : Electrical: 1/4 Inch Quick Connect Male Terminals
Voltage Rating : 24 VAC
Frequency Rating : 60 Hz
Dimensions : 4-1/16 Inch Width x 2-11/16 Inch Depth x 5-3/8 Inch Height
Temperature Rating : Operating: 0 - 175 deg F
Includes : Natural Gas to LP Conversion Kit, (2) 3/4 Inch - 1/2 Inch Reducer Bushings
Pressure Rating : 1/2 psi
Capacity : At 1 Inch WC p.d. 200000 BTU/hr: 30000 - 300000 BTU/hr Natural Gas
Pressure Tapping : 1/8 Inch NPT with Plug
