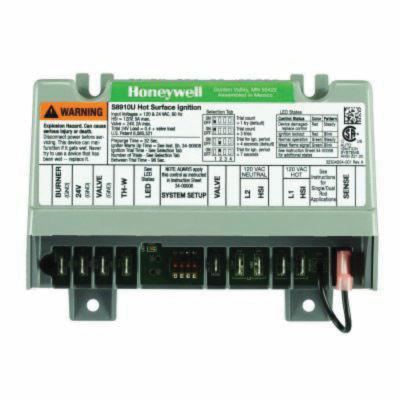

Honeywell S8910U-1000

Honeywell Tradeline® S8910U Universal Hot Surface Ignition Module For Single Rod or Dual Rod/Remote Sense Applications, 24 VAC

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: S8910U-1000
  • PSCN: 20286
  • UPC: 85267141246
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Universal hot surface ignition module replaces multiple field installed hot surface ignition modules supplied by Honeywell, White-Rodgers, Robertshaw and Johnson. Uses a 120 VAC igniter. Includes cross reference, instructions, and accessories for easy replacement.

  • Replaces over 800 White-Rodgers, Robertshaw and Honeywell hot surface ignition models
  • For 120 VAC (up to 5 A) surface igniter (Norton 201/271 or equivalent)
  • S8910U 3000 Series has LED status indicator and microammeter ports for easy trouble shooting
  • For local (single rod) or remote (dual rod) rectification type flame sensing
  • Contains easy-to-use cross reference and instructions plus the accessories required to replace the existing hot surface ignition module
  • Provides one or three ignition trials (four-second or seven-second trials) per call for heat
  • Field selectable number of ignition trials and trial time based on unit being replaced
  • Igniter warm up time: 7 (12 seconds second and third trial), 17 (27 seconds second and third trial), 34, or 45 seconds

Standard/Approvals: CSA Certified

Application: For Single Rod Or Dual Rod/Remote Sense Applications

Brand : Honeywell
Sub Brand : Tradeline®
Voltage Rating : 24 VAC
Series/Model : S8910U
Amperage Rating : 2 A at 24 VAC Load
Item Name : Hot Surface Ignition Module
Type : Universal
