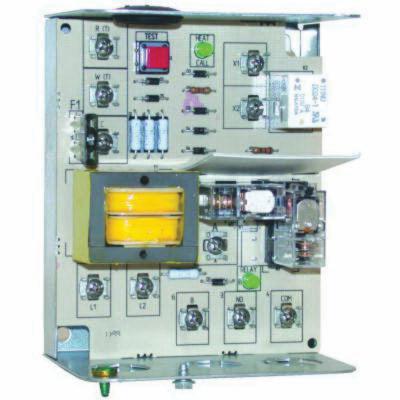

Honeywell R8845U1003

Honeywell PowerPile® R8845 Universal Switching Relay, 24 VAC, SPST

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: R8845U1003
  • PSCN: 340436
  • UPC: 85267198080
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The R8845U universal switching relay with 24 V transformer provides intermediate switching of line-and low-voltage devices from a line- or low-voltage controller and is typically applied in hydronic heating systems.

  • Replaceable socketed relays
  • Two troubleshooting LED
  • Push-to-test button
  • Replaceable transformer fuse
  • Low-voltage contact rating for PowerPile® applications
  • Long-life DC relay drive control technology
  • Relay for use with external 24 VAC or 24 VDC supply, with line-voltage control, or with internal 24 V transformer supply
  • One model replaces many competitor models
  • One model may replace many Honeywell models:R182A, B, C, J; R482A, B, C, J; R845; R882A, B, C, J and RA832

Standard/Approvals: UL Listed File No E4436, Guide No. XAPX, cUL Listed Guide No. XAPX7

Application: For Enclosed Universal Switching Relay With Internal Transformer, 24 V 2 Or 3 Wire Thermostat Control Of Line Voltage Devices, Two line Voltage SPST Relays And One Low Voltage SPST Relay With PowerPile® Rating

Brand : Honeywell
Sub Brand : PowerPile®
Item Name : Universal Switching Relay
Series/Model : R8845
Voltage Rating : 120 V Input
Amperage Rating : 0.4 A Coil
Coil Voltage : 24 VAC
Connection Type : 2 or 3 Wire Control Circuit
Contact Configuration : SPST
Contact Rating : 7.4 A AFL, 44.4 A at 120 VAC on Each Set Of Line-Voltage Contacts
Temperature Rating : Ambient: -20 to 120 deg F
Frequency Rating : 60 Hz
Material : Steel
Finish : Zinc-Plated
Dimensions : 6-1/4 Inch Height x 4-7/16 Inch Width x 3-1/2 Inch Depth
Includes : Integral Transformer, Enclosure
