Honeywell PA404B-1023

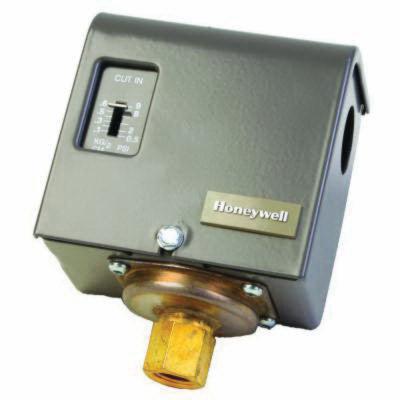

Honeywell PressureTrol® 40 Series PA404 Pressuretrol Controller With Additive Differential For Suspension-Type Unit Heater, 120/240/277 VAC, 1/4 Inch FPT

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: PA404B-1023
  • PSCN: 17567
  • UPC: 85267064316
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The PA404 is a series 40 (2-wire, SPST) pressuretrol controller for use in 24, 120, 240 or 277 V control circuits or in self powered (millivoltage) applications.

  • The PA404B is used with suspension-type unit heaters to make the fan circuit when a pressure rise indicates the presence of steam
  • Each model contains an SPST micro switch snap-acting switch
  • Sensitive pressure-actuated diaphragm expands or contracts with pressure variations, moving a lever mechanism which operates the snap switch
  • A screw on top of the case allows set point adjustment without removing the cover
  • Differential is adjusted by means of a dial located inside the case

Standard/Approvals: UL Listed File Number MP466, Guide Number MBPR, CSA Listed File Number LR1620

Application: For Use With Suspension Type Unit Heaters

Brand : Honeywell
Sub Brand : PressureTrol®
Series/Model : 40 Series, PA404
Item Name : PressureTrol Controller with Additive Differential
Voltage Rating : 120/240/277 VAC
Amperage Rating : 0.25 A at 0.25 - 12 VDC; 120 VAC, Resistive: 8.3 A; 240 VAC, Resistive: 8.3 A; 277 VAC, Resistive 7.2 A
Power Rating : 150 VA at 277 VAC Pilot Duty
Pressure Rating : 20 psi Safe, 0.5 - 9 psi Adjustable Operating, 1 - 5 Adjustable Differential
Temperature Rating : Ambient: 150 deg F
Finish : Gray Enamel Case
Length : 3-3/8 Inch
Width : 2-1/4 Inch
Height : 4-15/32 Inch
For Use With : Suspension-Type Unit Heater
