EWC URD - 6

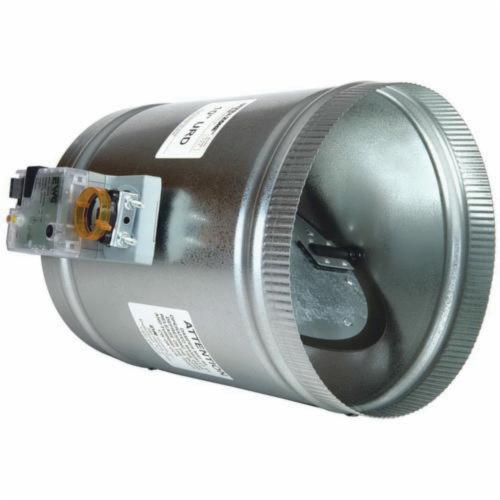

EWC Ultra-Zone™ URD Galvanized Steel Round Open/Close Power Motorized Damper With MA-ND5 Actuator, 6 Inch

  • Mfg. Name: EWC Controls
  • Brand Name: EWC
  • MPN: URD - 6
  • PSCN: 216945
  • UPC: 845484003204
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The URD series of round motorized dampers are a double layered blade design with an integrated Poron™ sealing gasket. The superior design insures long life and zero maintenance. URD dampers are easy to install, easy to wire up, and come with a 5-year warranty. The URD damper is constructed of heavy 24 ga galvanized steel with factory rolled stiffening beads. The nylon bearings and ThermoTuff™ drive shafts insure smooth, quiet operation and provide a thermal barrier to the motor. The URD is designed to operate reliably at static pressures up to 1.5 Inch W.C. The UL Listed MA-ND5 Actuator is a 24 VAC 3 wire power open / power close type rated at 18 Inch-lb. of torque. It includes an integrated wiring terminal block, and a NEMA1 rated housing. The MA-ND5 motor features bright green and red led's which correspond to the open and closed position of the blade. The motor also includes adjustable end-stops for min/max blade position, that allows for field balancing of the full or minimum cfm flow, into a particular zone or area. The position LED's will illuminate regardless of the end stop positions.

Standard/Approvals: UL Listed, NEMA 1 Rated

Brand : EWC
Sub Brand : Ultra-Zone™
Item Name : Motorized Damper with MA-ND5 Actuator
Series/Model : URD
Size : 6 Inch
Shape : Round
Static Pressure : Upto 1.5 Inch W.C
Material : 24 ga Steel
Finish : Galvanized
Dimensions : 6 Inch Diameter x 12 Inch Length
Includes : MA-ND5 Motor
Voltage Rating : 24 VAC
Wires To Motor : 3
