EWC PRD-RD 12

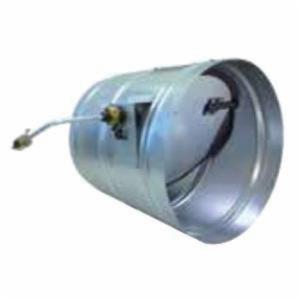

EWC Ultra-Zone™ PRD-RD Galvanized Steel Round Pressure Regulating Barometric Bypass Damper, 12 Inch

  • Mfg. Name: EWC Controls
  • Brand Name: EWC
  • MPN: PRD-RD 12
  • PSCN: 26802
  • UPC: 845484005093
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Model PRD-RD pressure regulating damper is a single blade, round variation of a barometric relief damper. This is the simplest, most economical way of bypassing excess static pressure in multi-zone applications. Resistance is controlled by offsetting the arm and adjusting the weights. The arm can be inserted into either side of the damper for added versatility.

Brand : EWC
Sub Brand : Ultra-Zone™
Item Name : Barometric Bypass Damper
Series/Model : PRD-RD
Type : Pressure Regulating
Size : 12 Inch
Shape : Round
CFM : 720 cfm at 900 fpm, 1100 cfm at 1400 fpm
Material : 24 ga Steel
Finish : Galvanized
Dimensions : 12 Inch Diameter x 14 Inch Length
