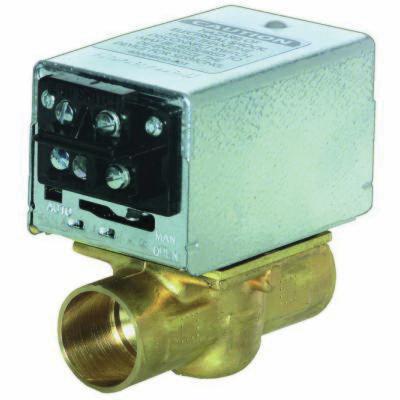

Honeywell V8043 Zone Valve, 1 Inch Sweat

Retail Price:

Qty

Add / Remove CPN

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.

Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure, valve returns to automatic position when power is restored
All models may be installed without disassembling the valve
Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
Actuator motor may be replaced without removing the valve body or draining the system

Standard/Approvals: UL Listed File MH11826

Application: For Hydronic Control

Brand	:	Honeywell
Item Name	:	Zone Valve
Series/Model	:	V8043
Size	:	1 Inch
Connection Type	:	Sweat
Voltage Rating	:	24 VAC
Electrical Connections	:	Screw Terminal Block
Material	:	Brass Body and Seat, Stainless Steel Stem, Buna-N (NBR) Rubber Ball Plug/Ball/Disc, EPDM Rubber Packing
Body Pattern	:	2-Way, Straight-Through
Action	:	Spring Return to Close
Amperage Rating	:	0.32 A Current Draw
Power Consumption	:	7.7 VA
Position	:	2
Auxiliary End Switch	:	N.O. SPST
Width	:	3-11/16 Inch
Height	:	4 Inch
Depth	:	2-3/8 Inch
Pressure Rating	:	8 psi Differential Pressure (Close-Off), 125 psi Static
Temperature Rating	:	Ambient: 125 deg F, Fluid: 50 - 200 deg F
Frequency Rating	:	50/60 Hz
