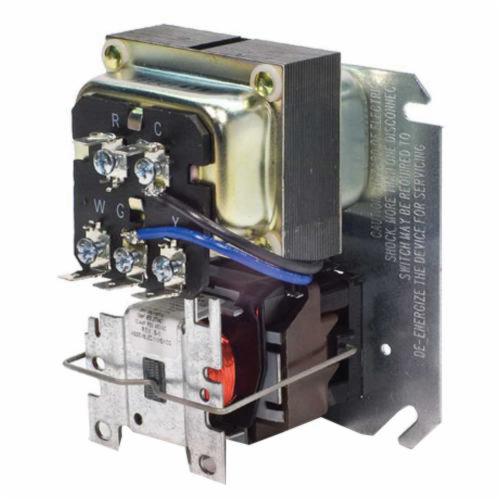

Honeywell R8285B Fan Control Center, 120/208/240 VAC DPDT

Retail Price:

Qty

Add / Remove CPN

Provides low voltage control of line voltage fan motors and auxiliary circuits in heating, cooling or air conditioning systems.

Transformer powers low voltage control systems and provides overload protection
Low voltage terminal board provides convenient connections for thermostat and heating and cooling equipment wiring
Mounts on standard 4 x 4 Inch junction box, relay is easily replaced without disturbing wiring

Standard/Approvals: UL Component Recognized File No. E4436, Vol.15, Sec.1, Guide No.XAPX2, CSA Certified File No. LR95329-17

Application: For Total Comfort Applications With Electronic Air Cleaner, Humidifier And Blower Motor

Brand	:	Honeywell
Series/Model	:	R8285B
Item Name	:	Fan Control Center
Voltage Rating	:	120/208/240 VAC
Frequency Rating	:	60 Hz
HP Rating	:	3/4 hp
Power Rating	:	11 W
Dimensions	:	4-1/2 Inch Width x 2-13/16 Inch Depth x 4-3/16 Inch Height
Includes	:	R8222B
