Uponor Wirsbo Q4690512

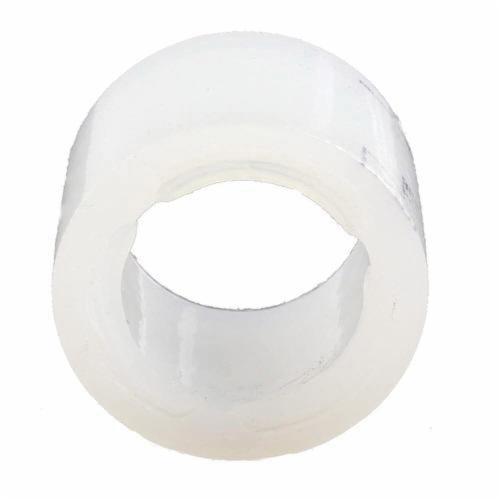

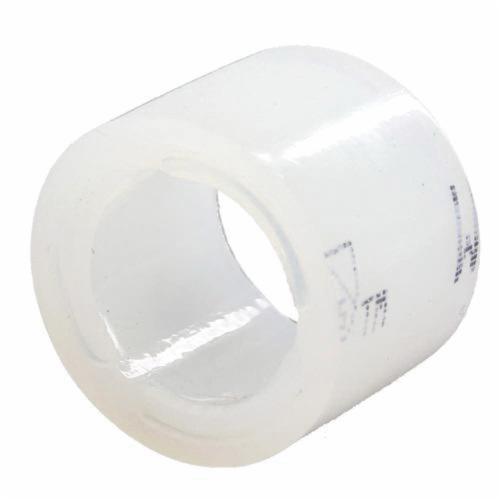

Uponor Wirsbo ProPEX™ Q4690512 Crosslinked Polyethylene Ring with Stop, 1/2 Inch PEX

  • Mfg. Name: Uponor Wirsbo
  • Brand Name: Uponor Wirsbo
  • MPN: Q4690512
  • PSCN: 18960
  • UPC: 673372210539
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Uponor ProPEX® rings are required to make a proper ProPEX connection. The ProPEX ring with stop includes a leading edge chamfer and stop edge to further simplify the use of ProPEX fittings.

Standard/Approvals: C/US NSF-fs, C/US NSF-pw, C/US NSF-rfh, C/US QAI, UL listed, CSA certified, WH, ETL, PPI TR-4, ICC-ES, IAPMO, BMEC, CCMC, C/US QAI P321, ANSI/NSF 14, ANSI/NSF 61, ASTM F876, ASTM F877, ASTM F1960, ASTM F2023, ASTM E84, CAN/ULC S102.2, ASTM E119/UL 263, CAN/ULC S101, ASTM E814/ULC S115, AWWA C904, CSA B137.5, CSA B214, UL 1821, ULC/ORD-C199P, Codes: ICC, IPC, IMC, IRC, UPC, UMC, NSPC, HUD, UFGS, NPC Of Canada, NBC Of Canada

Application: For PEX-a Plumbing Systems, AquaSAFE Fire Safety Systems, Hydronic Radiant Heating And Cooling Systems, Snow Melting Systems, Turf Conditioning Systems, Permafrost Prevention Systems

Brand : Uponor Wirsbo
Sub Brand : ProPEX™
Item Name : Ring with Stop
Nominal Size : 1/2 Inch
Connection Type : PEX
Material : Crosslinked Polyethylene
Length : 0.63 Inch
Diameter : 0.63 Inch Inner x 0.87 Inch Outer
Pressure Rating : 200 psi
Temperature Rating : 200 deg F
Weight : 0.006 lb
