Honeywell RA889A1001

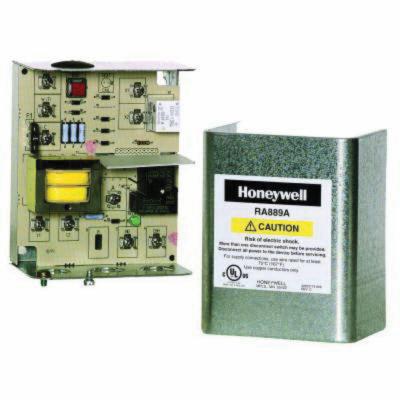

Honeywell RA889A1001 Steel Zinc-Plated Switching Relay, 120 V, SPDT Plus 1 Powerpile SPST

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: RA889A1001
  • PSCN: 317971
  • UPC: 085267198370
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The RA889A switching relay with 24 V controller provides intermediate switching of line- and low-voltage devices from a line- or low-voltage controller and is typically applied in Hydronic heating systems.

  • High load switching capability
  • Troubleshooting LED
  • Push-to-test button
  • Replaceable transformer fuse
  • Long-life DC relay drive control technology
  • One model replaces many Honeywell models
  • Secondary of transformer protected by replaceable 1 A automotive fuse
  • 0 to 90% RH, non-condensing operating humidity
  • Provide intermediate spdt and spst switching of line- and low-voltage devices from a line- or low-voltage controller

Standard/Approvals: UL File Number E4436, Guide Number XAPX, Canadian Underwriters Laboratories Inc. Listed Guide Number XAPX7

Brand : Honeywell
Item Name : Switching Relay
Voltage Rating : 120 V
Coil Voltage : 24 V
Amperage Rating : 10.2 A
Connection Type : #8 Captivated Wire Clamp Screw Terminals
Contact Configuration : SPDT Plus 1 Powerpile SPST
Contact Rating : 15 A at 120 VAC (AFL), 30 A at 120 VAC (ALR), 2000 VA (Load)
Temperature Rating : -29 to 49 deg C Ambient
Frequency Rating : 60 Hz
Material : Steel
Finish : Zinc-Plated
Dimensions : 4-7/16 Inch Width x 3-1/2 Inch Depth x 6-1/4 Inch Height
Includes : Integral Transformer, Enclosure, Trouble Shooting LEDs, Push-To-Start Button and Replaceable Transformer Fuse
