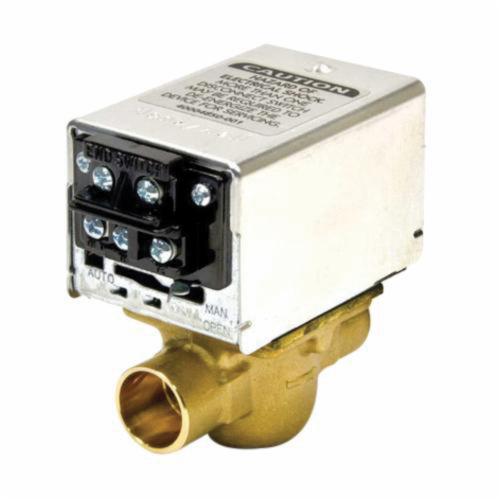

Honeywell V8043F1036 1000 Series Brass 24 VAC Zone Valve, 3/4 Inch Sweat, 3.5 Cv

Retail Price:

Qty

Add / Remove CPN

Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure, valve returns to automatic position when power is restored
All models may be installed without disassembling the valve
Complete powerhead may be removed or replaced Without breaking plumbing line connections or draining the system
Actuator motor may be replaced without removing the valve body or draining the system
Compact construction for easy installation
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water
5 to 95% relative humidity, non-condensing
1-year limited warranty

Standard/Approvals: UL File Number MH11826

Brand	:	Honeywell
Item Name	:	Zone Valve
Series/Model	:	1000 Series
Size	:	3/4 Inch
Connection Type	:	Sweat
Voltage Rating	:	24 VAC at 50/60 Hz
Material	:	Brass Body and Seat, Stainless Steel Stem, Buna-N (NBR) Rubber Ball Plug/Ball/Disc
Body Pattern	:	2-Way, Straight-Through
Action	:	Spring Return to Close
Amperage Rating	:	Changeover Aquastat Control: 3 A with 10 A Inrush at 120 V, End Switch: 4.4 A Running with 26.4 A Inrush (60 Hz) at 120 V, 0.32 A Current Draw
Power Consumption	:	7.7 VA
Position	:	NC
Auxiliary End Switch	:	N.O. SPST
Wiring Type	:	18 Inch Leads
Width	:	3-1/2 Inch
Height	:	4 Inch
Depth	:	2-3/8 Inch
Pressure Rating	:	20 psi Differential, 125 psi Static
Temperature Rating	:	125 deg F Ambient, 50 to 200 deg F Fluid
Includes	:	Screw Terminal and End Switch
